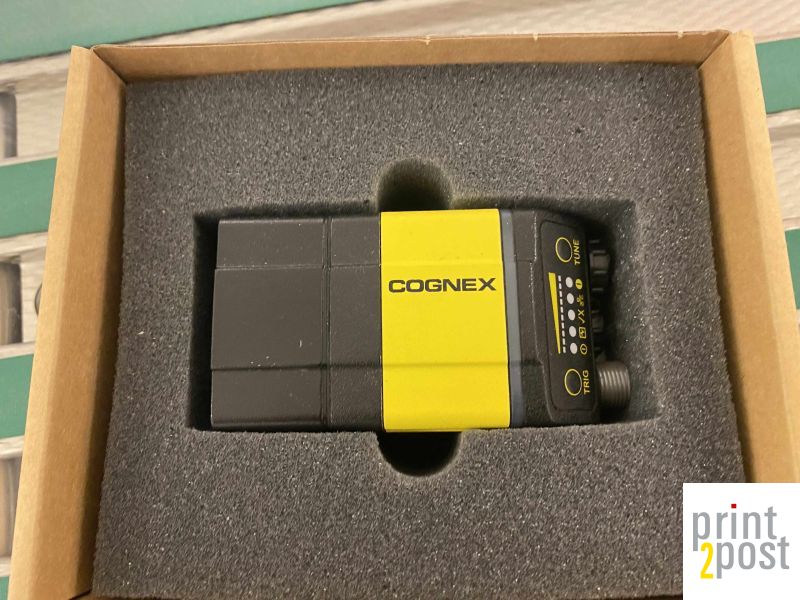

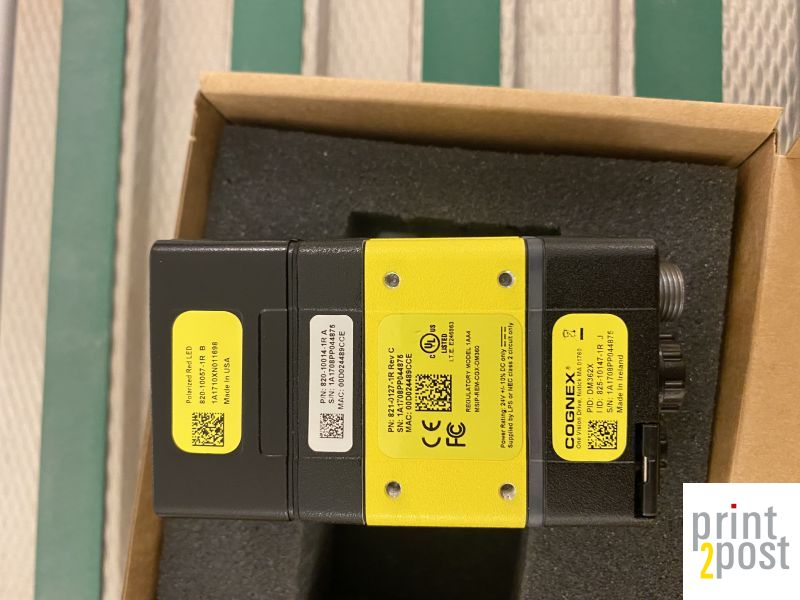

COGNEX read head for input channels such as Böwe 590, 310, 380

Images:

1D / 2D Fixed-mount barcode reader / scanner (1.2Mpixel) with 24mm liquid lns. + diffuse illumination high-power integrated light (HPIL) - HPIL (High-powered integrated light) - COGNEX (DataMan 360 series) - DM362X - 1280x1024pixels SXGA resolution (1/1.8" CMOS sensing with global shutter) - 60fps - C-mount type / S-mount type - 1 x digital input (10-28Vdc / trigger input) + 3 x digital inputs (10-28Vdc / discrete inputs) + 4 x digital outputs (26.4Vdc 50mA Sink/Source / discrete outputs) - 8-pin M12 connector (Ethernet) + 12-pin M12 connector (supply) + 5-pin M12 connector (External light control) + Micro SD card slot - Supply voltage 24Vdc - with RS-232 + Ethernet communication capability - IP65 - with ImageMax Kitted system - compatible with 1DMax; 2DMax; IDQuick; Omni-direction 1-D code reading

Extras (included):

Option (not included):

Frequency:
50/60 Hz.

1^st Installation:
NEW in box

Status:
new

Availability /ex works:
imm / GE

Price in EURO:
Request a quote

manufacturer's brochure:
Technical Specification

ref. nr:
cognex_readhead_01
