inserter with 380 pinless cutter, 2 stations
TOP SENSO reading for all codes

Images:

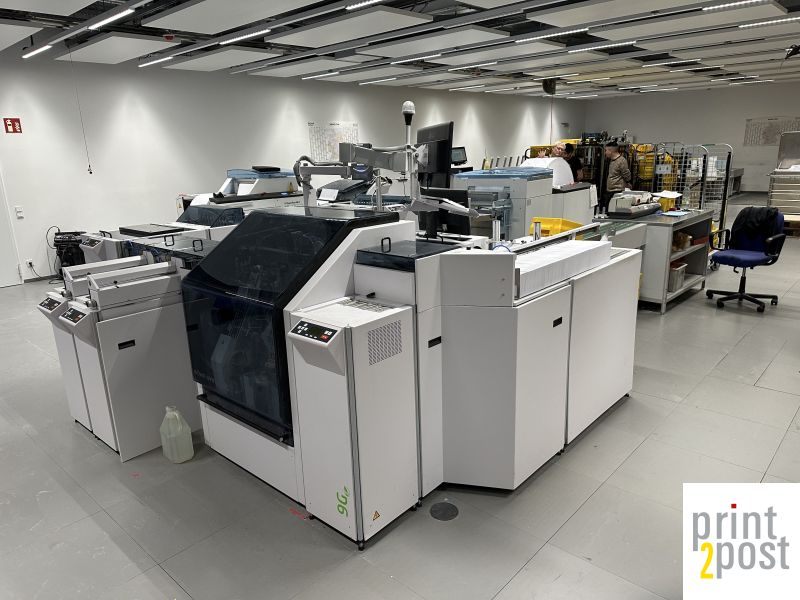

Manufacturer / Model:
Böwe / Turbo 9G Smart TYp 154/2-80B

Configuration:
7106 loop module
1 channel cutter pinless 380HS Stream with left and right opertor panel
4580 merger with vacuum
4880 assembly station
6015 folding unit

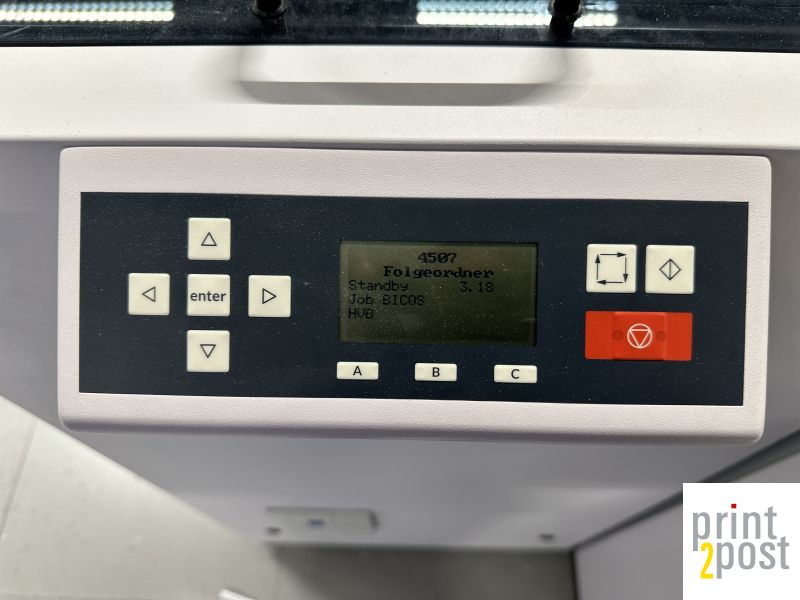

4507 sequencer
4806 assemly station

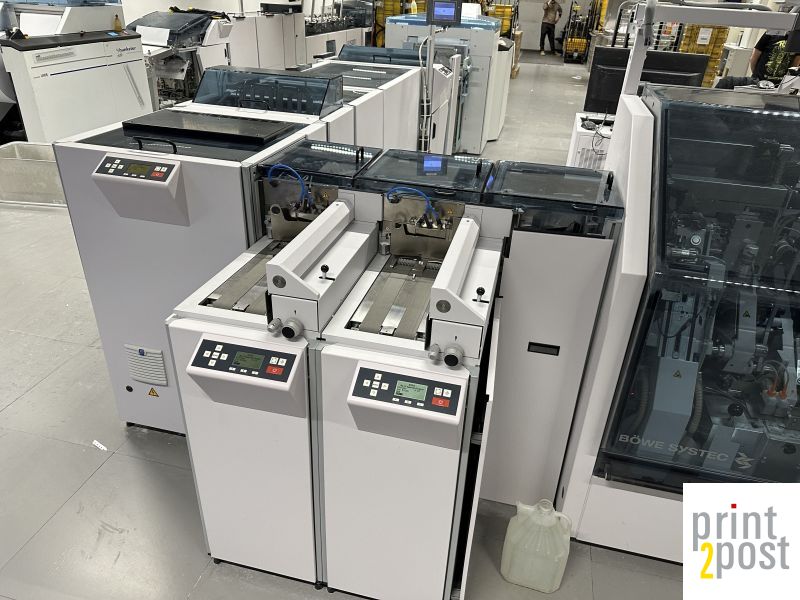

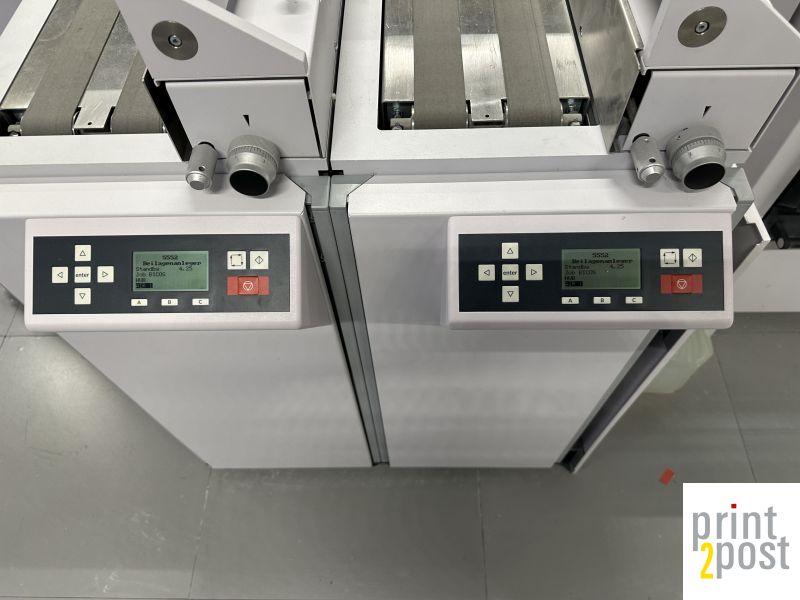

5552 (2x) enclosure station up to C5

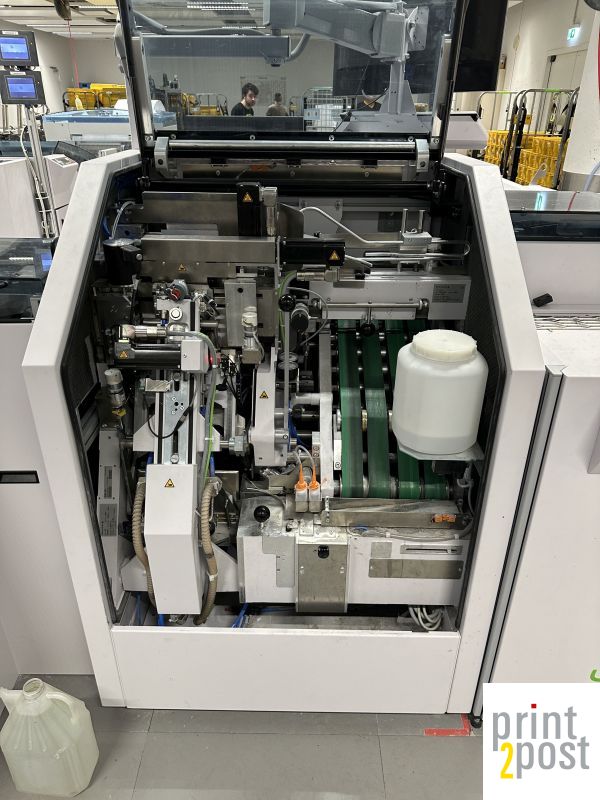

501 inserter 26K
5571 envleope feeder up to 3k envelopes
7512 check bin

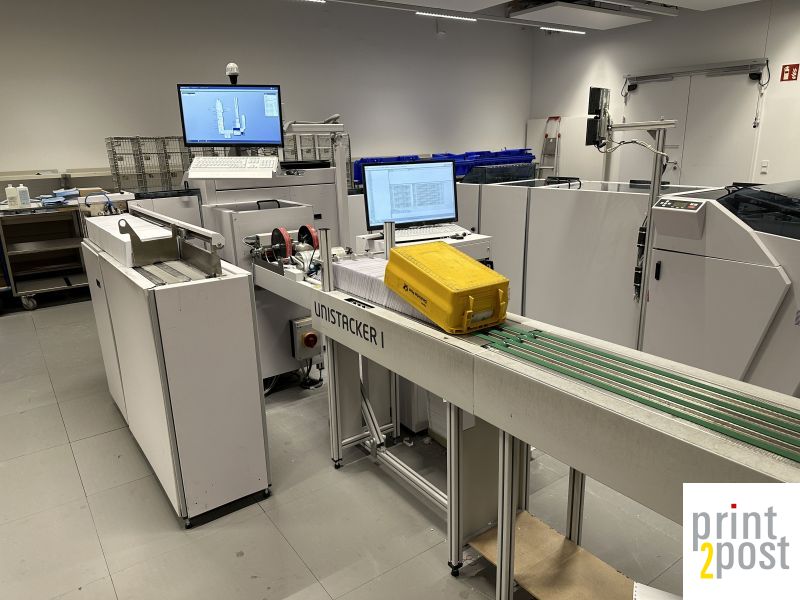

5640 UNI stacker with add. operator panel for inserter

8500 central PC
WIN10

Stationary formats:
C6 – C5 | #7 3/4 – 6 X 9

1st channel:
380 high speed cutter with Hunkeler UW8

2nd channel:
no

Enclosures:
2 (2x 5552)

Speed in env/h up to:
26.000 gross

max. envelope thickness:
1.8 MM | 0.08"

max. filling thickness:
7 MM | 0.28"

reading:

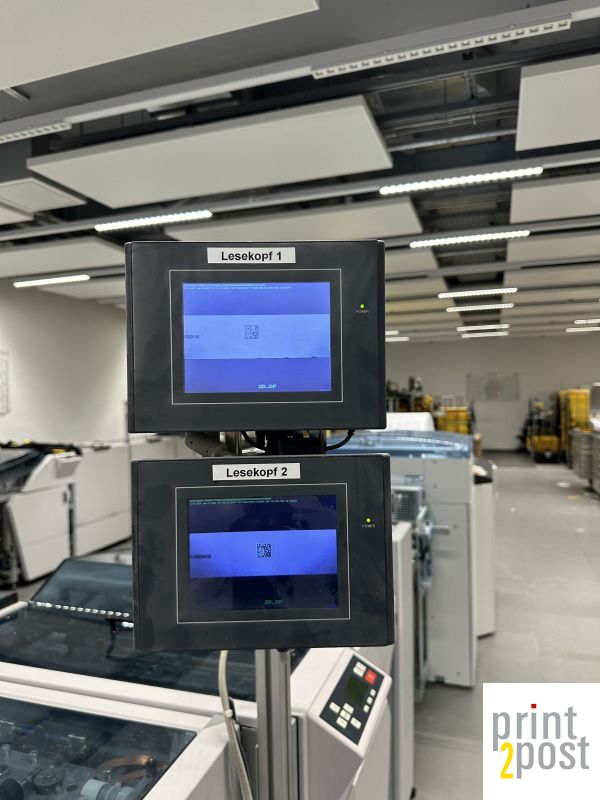

2x TOP SENSO for OMR, Barcode, 2D, OCR (2x from above)

Extras (included):

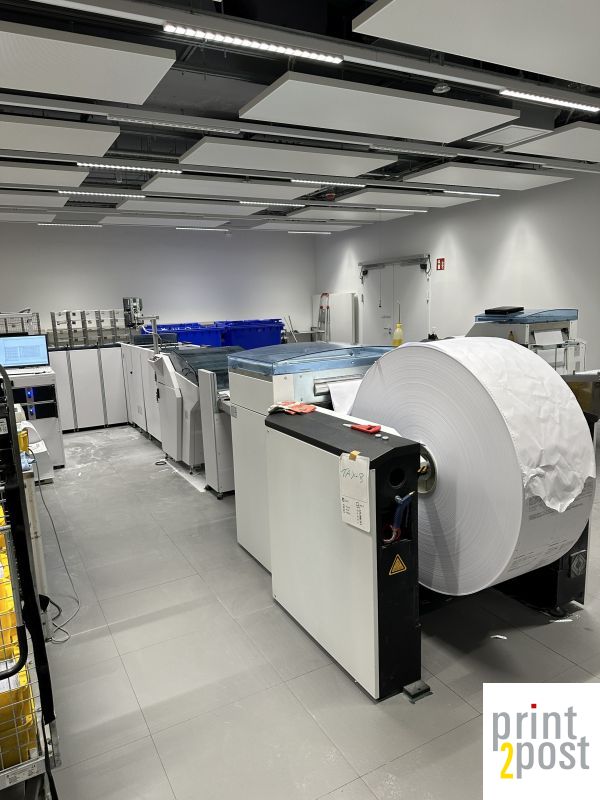

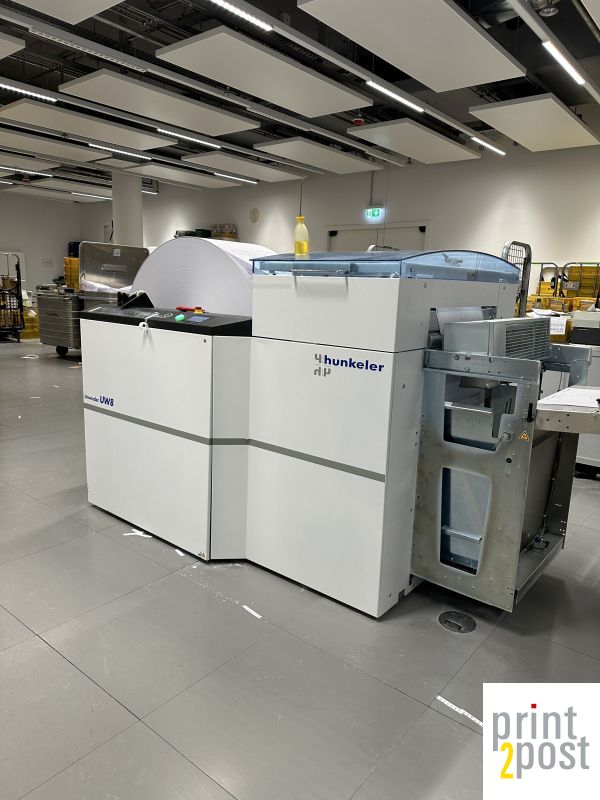

Hunkeler unwinder UW8 220m/min right version with Vacuum unit+blower

Option (not included):
there are 2 identical inserters Bowe 9G on site (20,7 Mio and 15 Mio env.)

Frequency:
50 Hz.+ 60 Hz.

1^st Installation:
10/21

Clicks/envelopes in Mio:
20,7 Mio

Status:
installed

Availability /ex works:
06/24 / GE

Price in EURO:
Request a quote

manufacturer's brochure:
Technical Specification

machine's layout:
click here

p2p ref. nr:
trb_23

video:
https://youtube.com/shorts/818UyWgPsSo?feature=share
