Kern 3500 continuous pinfed, OMR, 4 encl. VROG (3521)

cont. cutter pinfed 2-up, vertical stacker,
4 enclosures, also possible as pinless

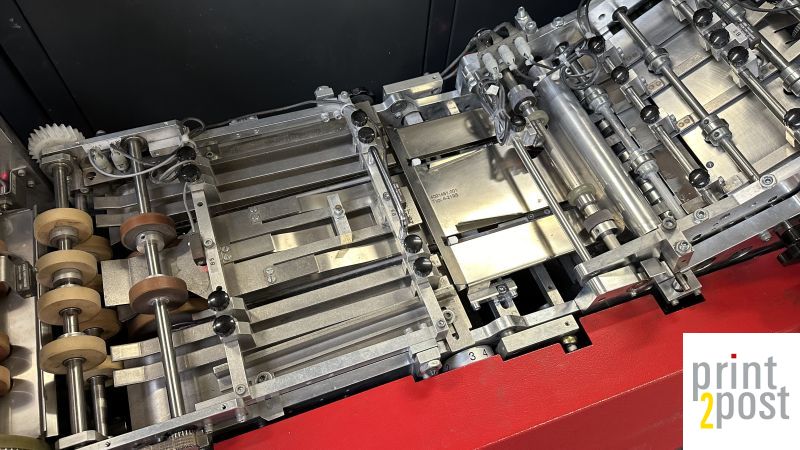

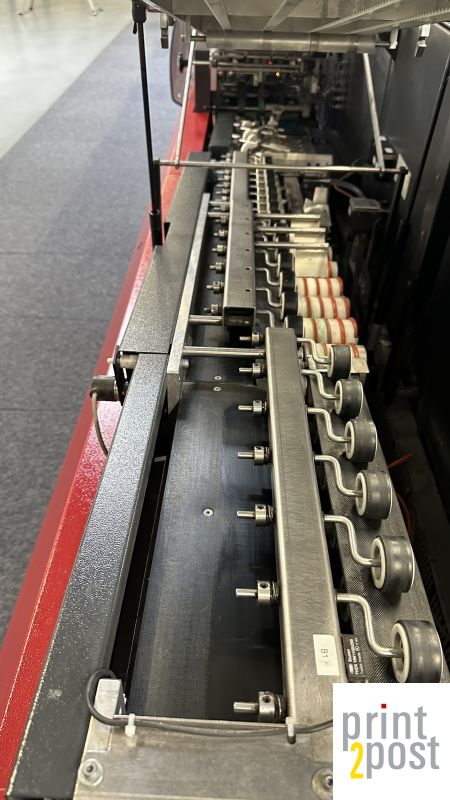

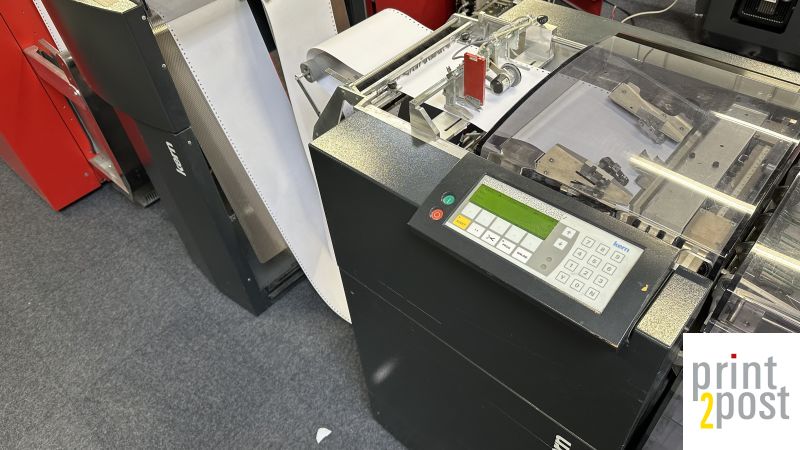

Images:

Icon
IMG 7953 Freigestellt
IMG 7954
IMG 7955
IMG 7956
IMG 7957
IMG 7958
IMG 7959
IMG 7960
IMG 7961 Freigestellt
IMG 7963 Freigestellt
IMG 7964freigestellt


Manufacturer / Model:

Kern / k3500



Configuration:
1 channel continuous pinfed, 4 enclosures, OMR reading form above (also possible form beneath and also as pinless

Envelope sizes:
DL, C6, C6/5, C5

Speed in env/h:
22.000 gross

1st channel:
continuous, reading: OMR, pinfed or pinless

2nd channel:
no

Enclosures:
4 ZSEG/ZSMS/ for 4 stations in total

Number of check bins:
2

Extras (included):
VROG-2, Vertical stacker, conveyor

Option (not included):
2x 2D Datamatrix with long reading table on K990
OMR reading from above AND beneath (4 read heads)
add. ZSMS enclosure station for station 5+n
unwinder Lasermax LX550 or Hunkeler UW6 150 VU R 7183
reading on exit
cutter/merger PINLESS K945/995 with 2D Datamatrix

Frequency:
50 Hz.

1st Installation:
app. 2006

Clicks/envelopes in Mio:
app. 100 Mio

Status:
installed in  Showroom EU

Availability / ex works:
imm / EU

Price in EURO:
Request a quote

video:

on request via wetransfer

manufacturer's brochure:
the K3500 was designed to meet customer demands for shorter production times, maximum flexibility and the
latest automation. The K3500 inserting system is Kern’s flagship system and your gateway to high speed. Able to
process pre-cut single sheets as well as continuous forms from fanfold stacks. The K3500 adjusts to the application
being run and can produce up to 22,000 mailpieces per hour. Combined with the Dual Channel VSK module and
the K999s high speed cutting system, the K3500 can maintain full rated speed at up to 8 pages per envelope.

machine's layout:

ref. nr:
krn3521
