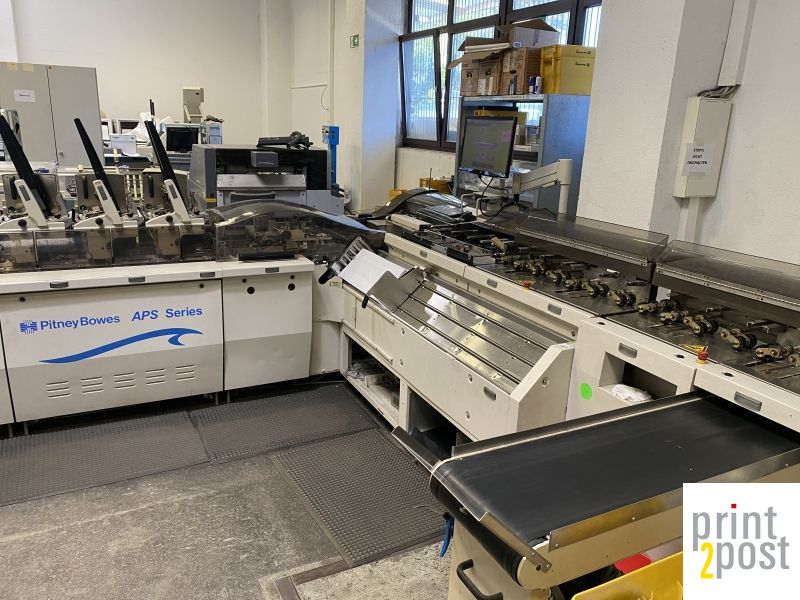

Pitney Bowes APS 22, single web 25K cutter BC + HiCap 36k feeder, YOM 2004

Images:

Manufacturer / Model:
Pitney Bowes / APS Y503 APS 3 station chassis

Modell:
APS

Configuration:
twin channel, 3 stations
first channel NORTH: 36k Hi Cap feeder Y250 Barcode, Y203A
second channel EAST: 25k single web cutter pinfed Y25S, Y204A

Y206 EAST enhanced Alpha East Port tranfer module
Y208 accu/fold, enhnaced accumulator Folder Alpha 3
Y571A Twist
Y572 APS 6 stage buffer
Folding unit
Y503 APS 3 station chassis,
envl. feeder,
Aligner
Sealer
Y701 APS V2bin module, check bins

shingling conveyor (post box system will not be sold)
APS DC SoftwarevAdvanced

Windows 7-pc

reading:
Y250 2D camera (2x on cutter, 1x on feeder=

Envelope sizes:
DL, C6, C6/5, C5

Speed in env/h:
22.000

Enclosures:
3 friction feeders

Number of check bins:
2

Extras (included):
conveyor

Option (not included):
Hunkeler UW6 150 VU
HSW post box system
direct connect licence

Frequency:
50 + 60 Hz.

1^st Installation:
2004

Clicks/envelopes in Mio:
177

video:

Status:
installed, inspection possible

Availability /ex works:
November 2021 /  ex warehouse Germany

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

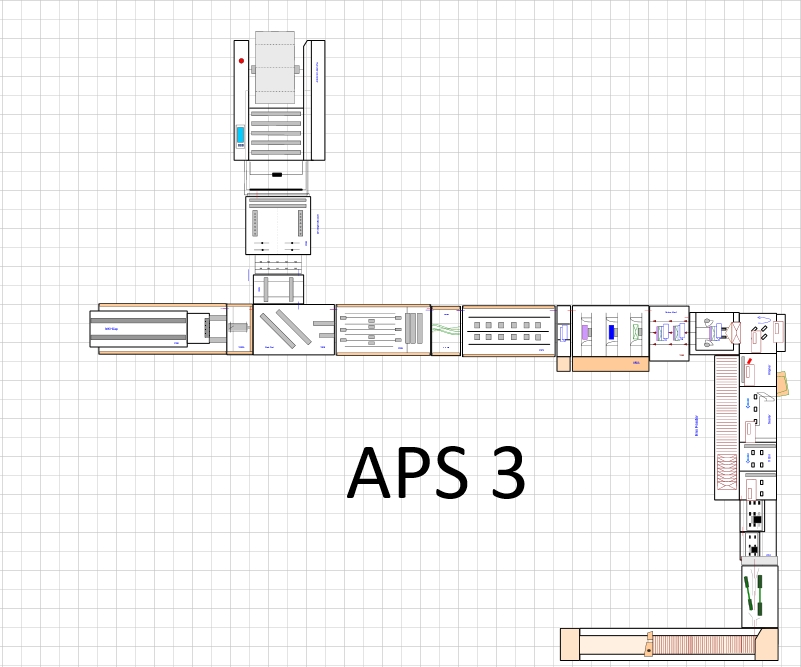

layout:
click here

p2p-ID:
pb_aps_06
