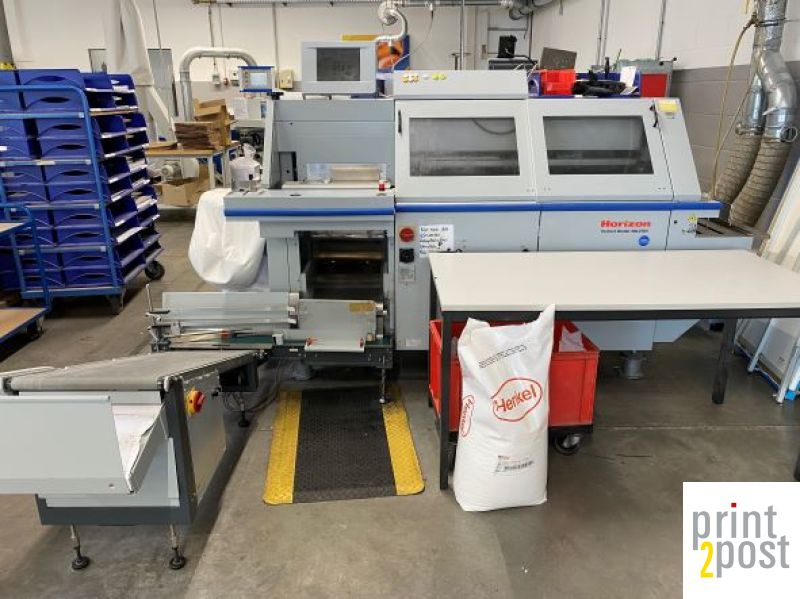

Horizon perfect binder BQ270V EVA with timer
YOM 2014, 236k books

Images:

Speed in m/min:
500 cycles/h

Extras (included):
weekly timer:
- When the weekly timer is used, turn on the main power switch all the time
- Even if the power switch for main body of BQ-270 is turned off, the weekly timer works and the melt tank will be heated according to the weekly timer setting.
- Turn on the power switch for main body of BQ-270 before performing the the binding operation.
- Turn off only the power switch for main body of BQ-270 after the binding operation is finished

automatic thickness caliper SI-270C
milling section with extraction
milling depth adjustable
cover feeder: suction drim feeder with 4x scoring
exhauster
high stack (hohe Auslage)

Sheet size:
max. 320 x 310mm, min. 135 x 115mm

Cover size:
max. 660mm x 320mm, min. 240 x 135mm

Cover weight range:
90 - 300gsm

Cover pile height:
max. 70mm

Frequency:
50 Hz.

1^st Installation:
07/2014

clicks:

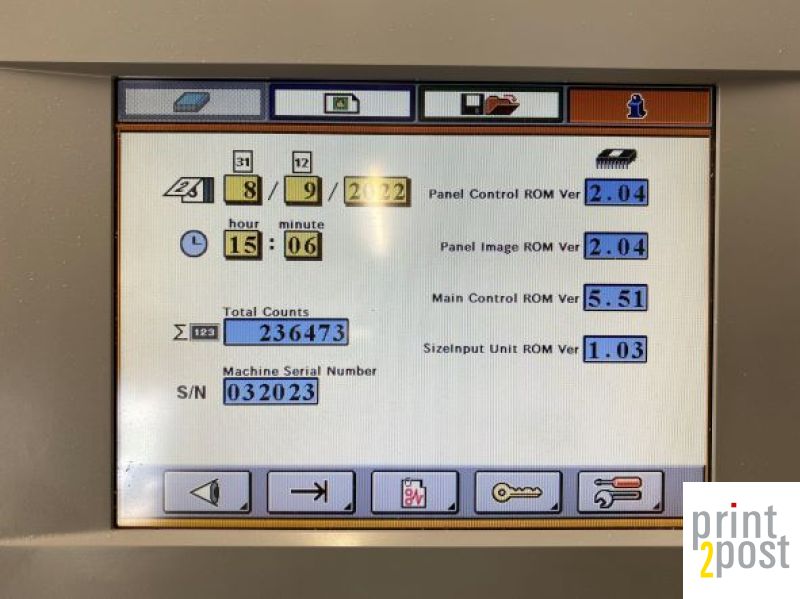

236.000 books

Status:
installed

Availability /ex works:
Dec 2022 / GE

Price in EURO:
Request a quote

manufacturers brochure:
click here

p2p_ID:
hor_bq270_12
