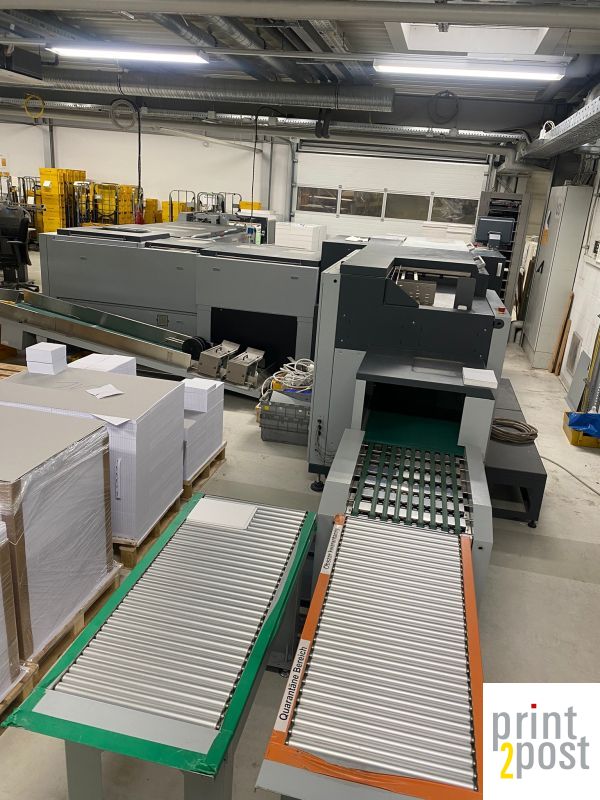

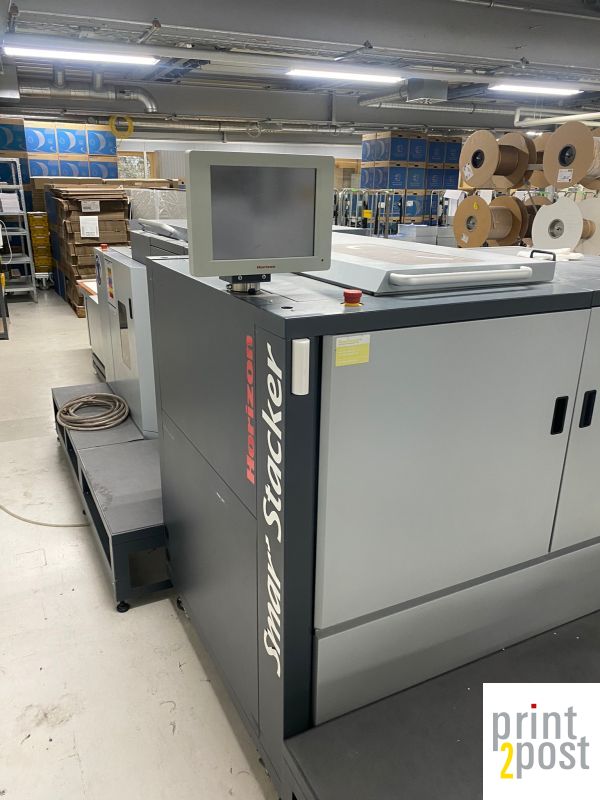

Horizon SmartStacker nearline with SMTS-F Feeder, SMTS-FBR, SMTS-EV

Images:

Speed in sheets/hr:
4.600

machine comprises of the following units:
SMST-F Smartstacker offline incl. Near-Line Feeder
SMTS-FBR barcode control
SMST-EV trim conveyor

1st register unit
1st process unit
90 degree turn conveyor
2nd register unit
2nd process unit
merge conveyor
merge stacker
output shift/conveyor

extras (included)
SMTS ionisation (2019)
SMST sensor set (2019)

Option (not included):
-

sheet size max: 762*530mm, min.: 279,4*330mm
final format: max.: 380*530mm, min.: 100*105mm
paper weight: 80-370g/m²
paper thickness: 0,1-0,381mm
stacking capacity: max. 254mm
using processing 1-28 repeats/B2

clicks:
44,9 Mio


Frequency:
50 Hz.

1^st Installation:
2014

Status:
de-installed

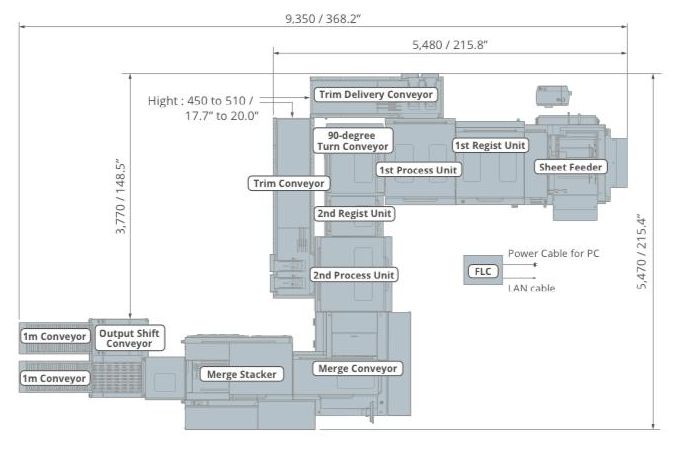

layout:
click here

Availability / ex works:
imm / Germany

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

P2P ID:
hor_ss:10

video:
