Hunkeler CS6 - HS / Horizon BBS-40, book block stacker,

Hunkeler / Horizon smart Binding System, UW6, CS6, AF566, T564, BBS-40

Images:

Horizon featured the Smart Binding System for continuous-feed digital print, which was producing short-run, variable books of different size and thickness from a roll with no manual touch points. A Standard Hunkeler UW6 unwound a pre-printed roll which was cut into sheets in the Standard Hunkeler CS6-HS rotary cutter. Dynamic sheet-length parent sheets were then folded into signatures in the Standard Horizon AF-566DF Folder and T564F. The signatures were stacked and glued into book blocks by Horizon’s BBS-40

line consists of the following modules:

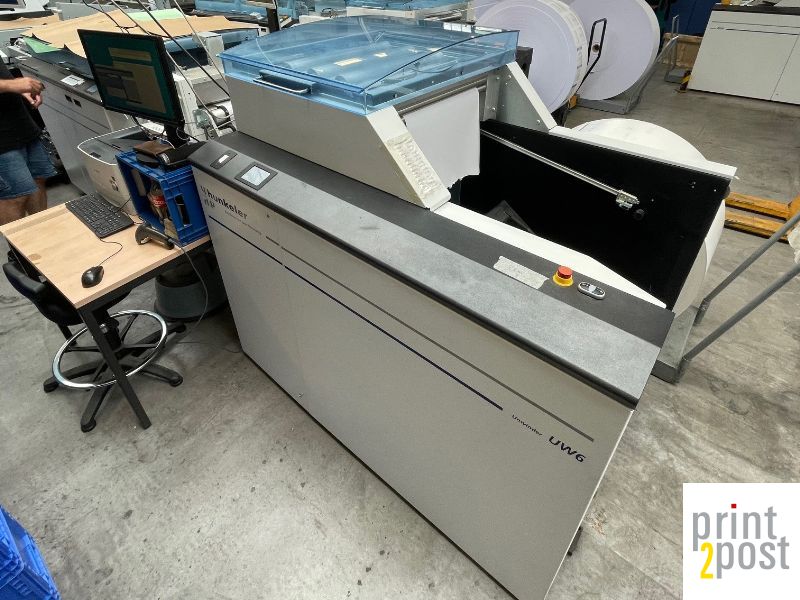

UW6 VU - 150m  unwinder with airshaft
LC6 loop control

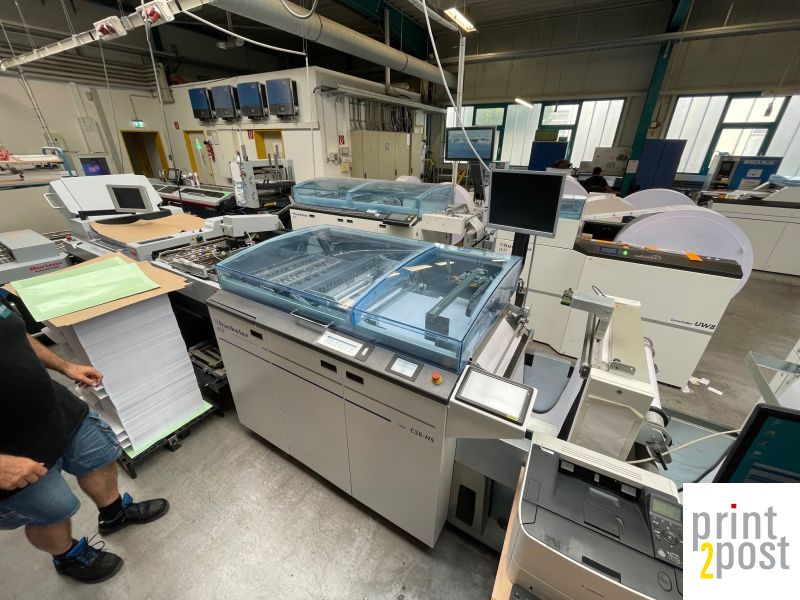

CS 6-HS cutter (CS6-2) pinless for 2-up, with 2 rotary knives
Horizon DIF-56

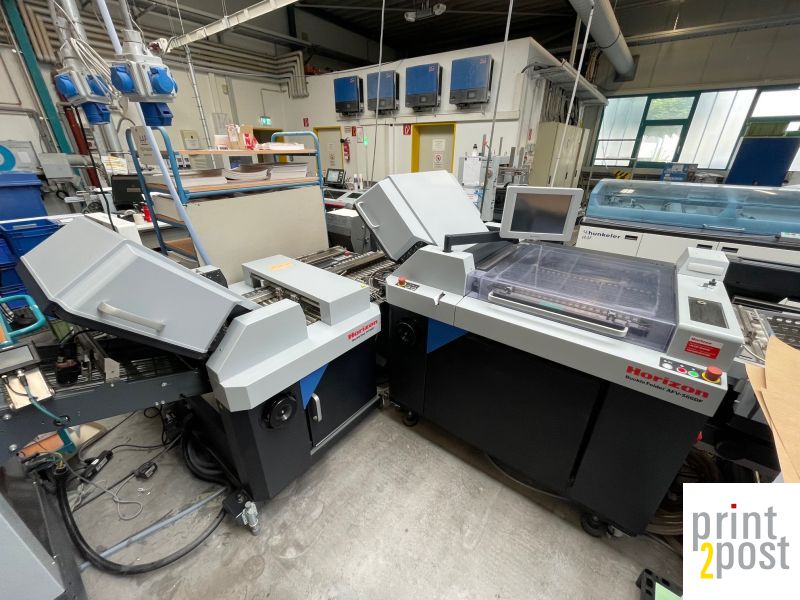

Horizon AF-566DF buckle folder (3 pockets, 2 diverts), max 558 W*865L mm - min 128W - 148L mm, 35-209gsm
Horizon T-564F (4 pockets) max 558 W*558L mm - min 50W - 128L mm, 35-209gsm

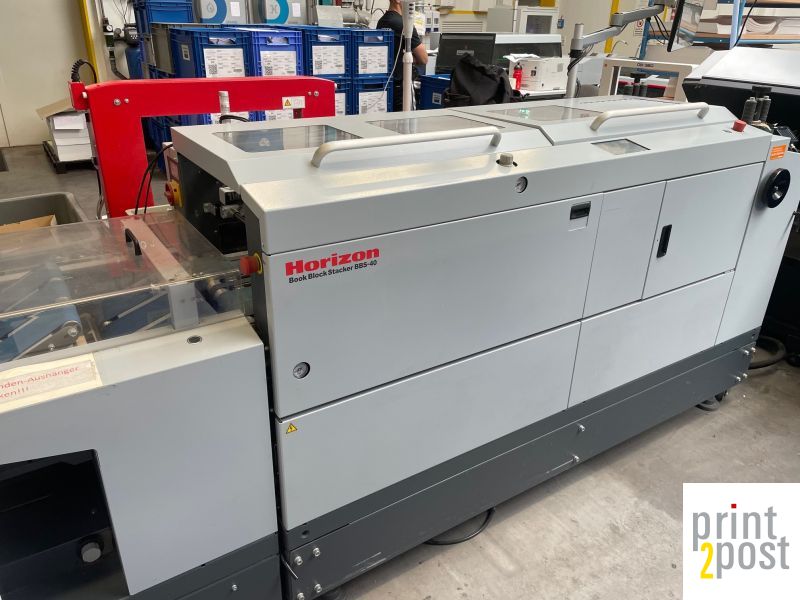

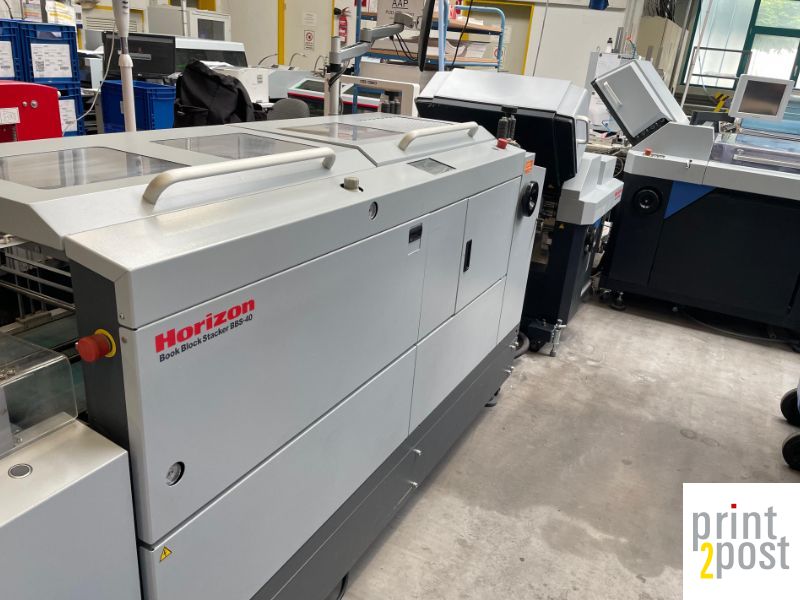

BBS-40 Bock Block stacker (camera tracking)

formats BBS:
click here

Transport:
pinless

Speed in m/min:
up to app. 150

Extras (included):
airshaft, trafo

Option (not included):

Frequency:
50 Hz.

1^st Installation:

Mileage:
app. 700.000 books (BBS)

Status:
installed

Availability /ex works:
imm / EU

p2p-ID:
cs6_27

Price in EURO:
Request a quote

manufacturers brochure:
click here

Layout:
click here
