Tecnau TC7000 with double cut/chip out
line with LX550 unwinder, Stacker TC1220

Images:

description:
high speed cutting solution with a speed up to 137m/min (450ft/min)
with dual knive TC1030  for variable chip out (strip out) to remove perforation- or cleaning lines up to 7,8mm
works offline. Inline (interface as option possible).
Grammature 80-250gsm

line consists of the follwing modules:

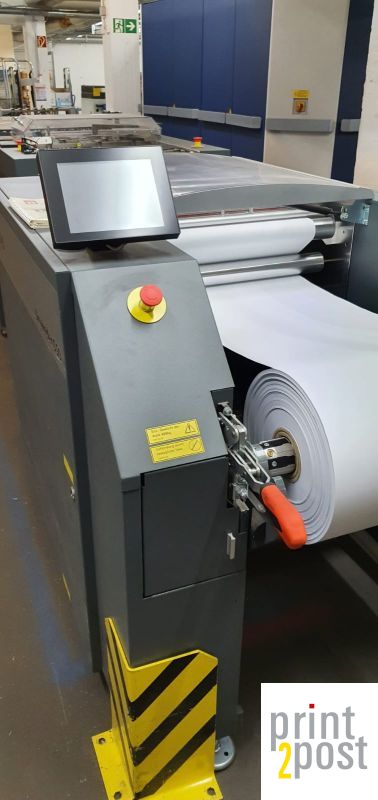

LX550 unwinder with compressor and 70mm airshaft

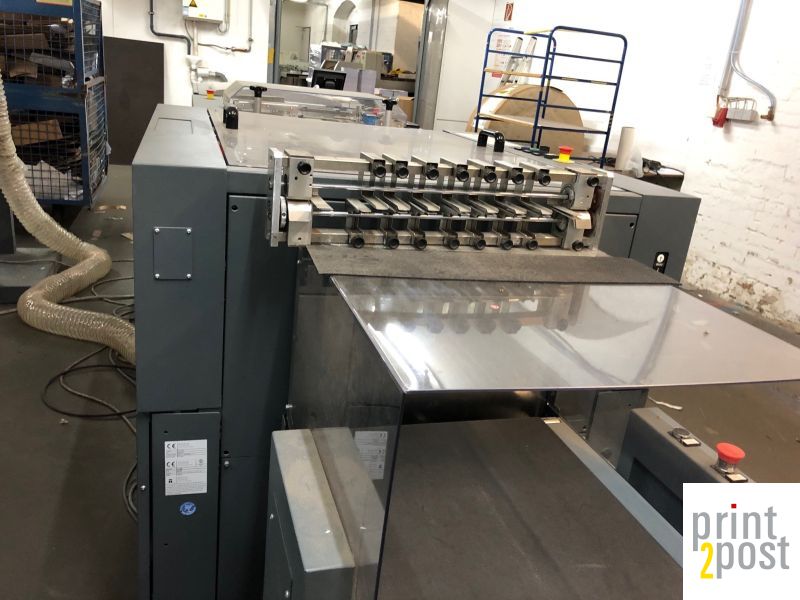

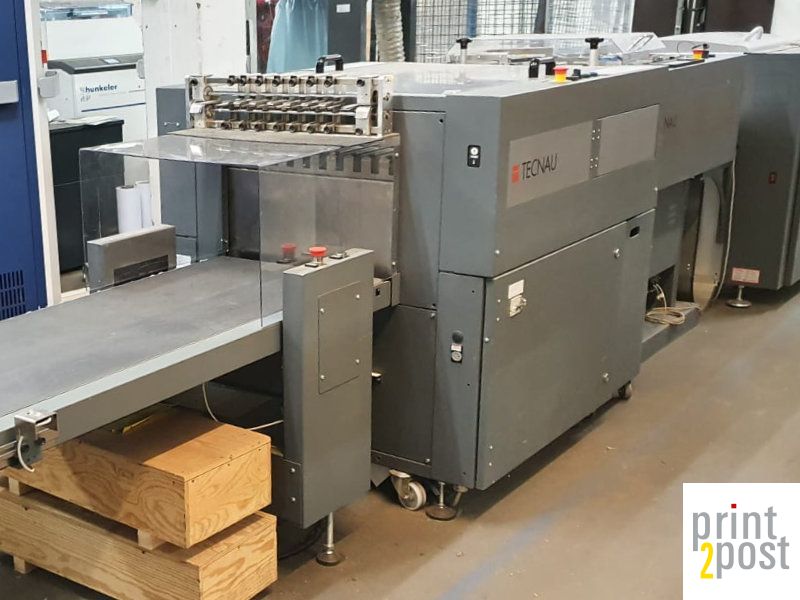

TC 7000 TS1 cutter incl. Datamatrix reading for 2-up with
TC 1030 W vertical blade cartridge (strip cut 7,8mm) + side trimming TC 1002 T + TC 1004

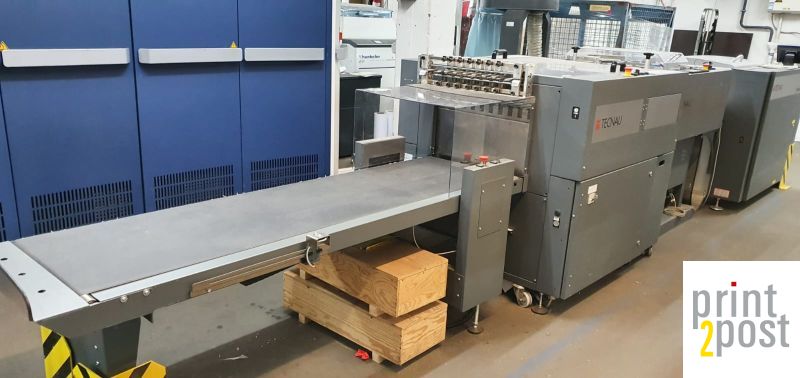

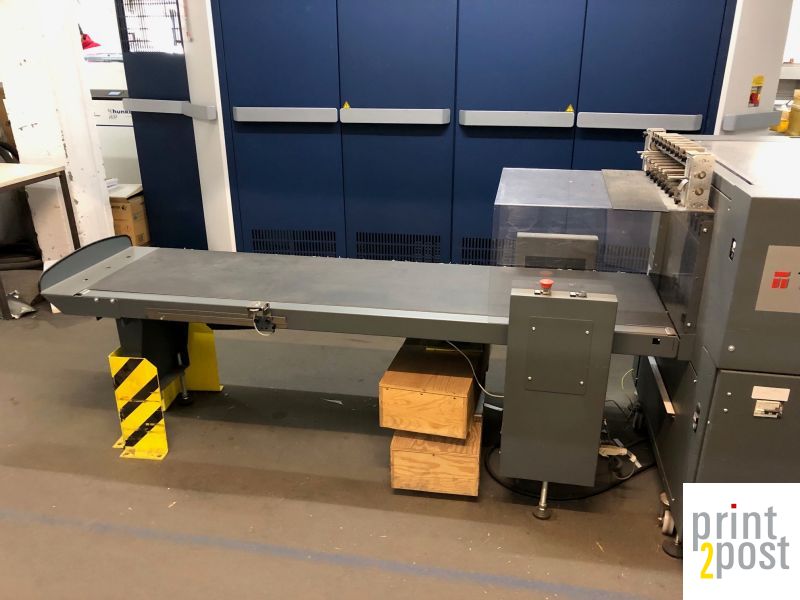

TC 1220 stacker with conveyor 2m

Transport:
pinless, lose web

web width:
420mm + 450mm

form width:
508mm

Speed in m/min:
up to 120

Extras (included):
airshaft 70mm

Option (not included):
Interface, other airshaft diameter, cross turning unit, moisturizer,
Lasermax loopox / dancer / infeed
oce cross turning unit 180°
WEKO RFDI moisturizer

Frequency:
50 Hz.+ 60 hz

1^st Installation:
2019

Status:
de-installed

Availability /ex works:
imm /  GE

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

p2p_ID:
tc_7000_01

video:
