Tecnau Stack 2320, line with C23 rotary cutter pinless, double cut for chip out, online

Images:

description:
high speed cutting solution with a speed up to 137m/min (450ft/min)

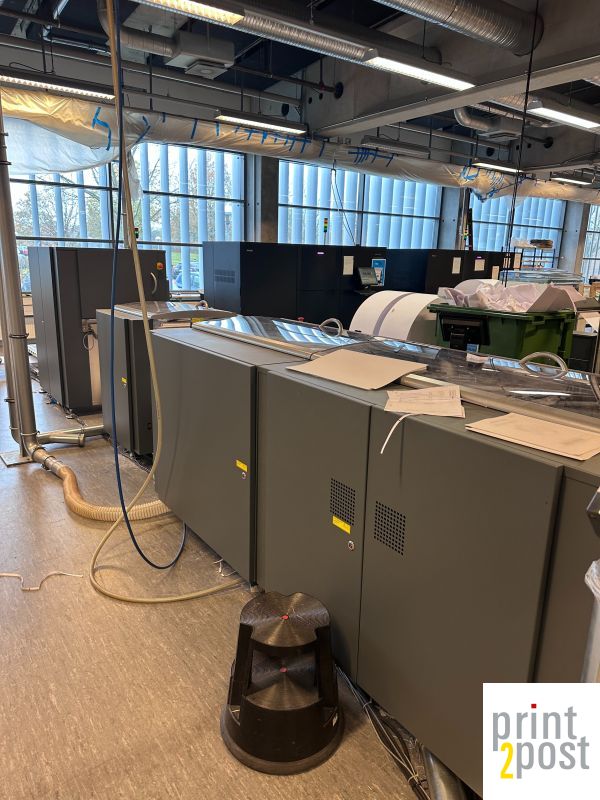

runs presently online with a Ricoh IP5000 AD3/4, can also rund offline.
with dual rotary knive for variable chip out (strip out) to remove perforation- or cleaning lines
works offline or inline (interface as option possible).
Grammature 50gsm and higher possible

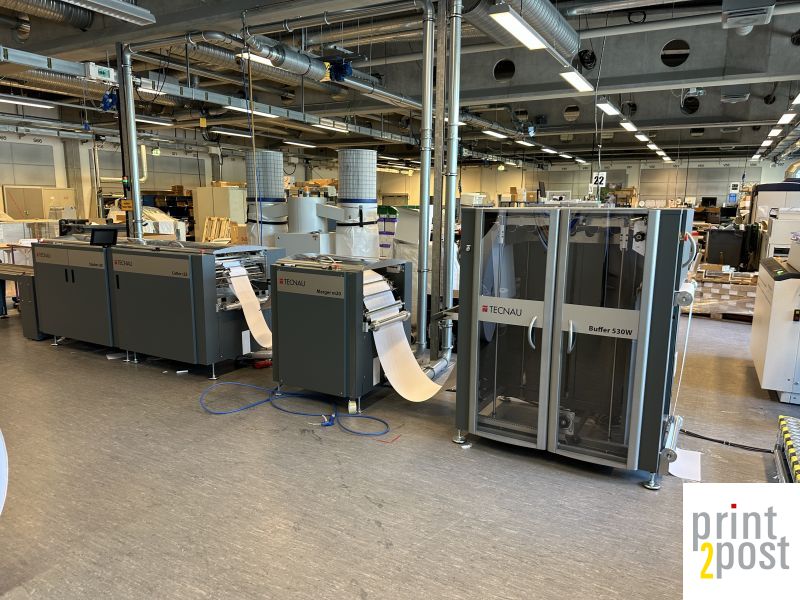

line consists of the following modules:
unwind550 LX550 unwinder e,g,   https://www.print2post.eu/pre-and-post-processing/lasermax-stralfors/lasermax-unwinder-lx550
(option infeed)
530W web buffer, (former LX530)

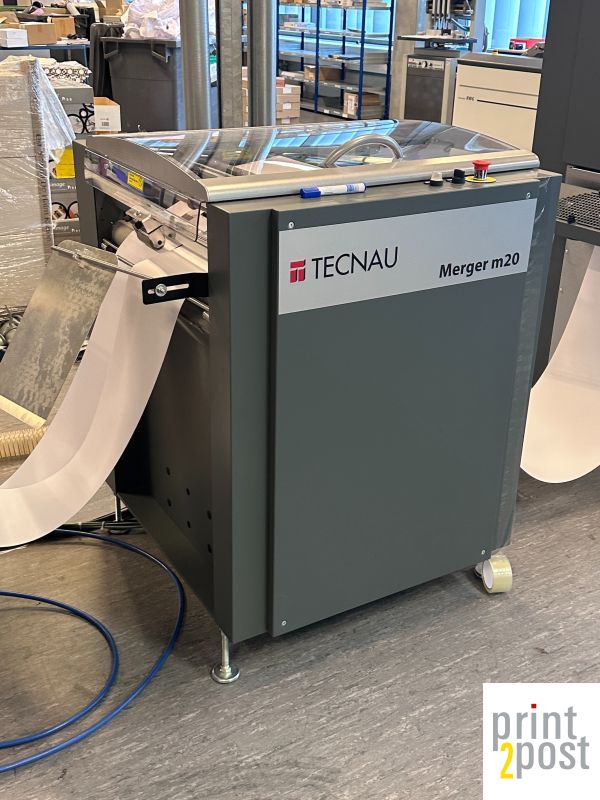

m20 merger (former LX535 slit merge)
C23 (pinless) cutter, 2-up, 1x middle knife, 1x gutter cut (chip out),
S20, stacker
Tecnau output conveyor 2m

Transport:
pinless
runs presently online with Ricoh IP5000 (interface available), can also run offline.

Speed in m/min:
up to 137 (450ft)

Extras (included):
airshaft 70mm

Option (not included):
Interface to almost any printer, other airshaft diameter, cross turning unit, moisturizer, step over - 90 degree
Lasermax loopbox / dancer / infeed
oce cross turning unit 180°
WEKO RFDI moisturizer

Frequency:
50 Hz.+ 60 hz

1^st Installation:
2023, condition as -new

clicks:
very little

Status:
installed / EU

Availability /ex works:
week 1 25 /  GE

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

p2p_ID:
tc_c23_09

video:
https://youtu.be/dI39KlZe3nI?si=BvUpVEq9y69BBSel
