Fastest B2 CS System in full color, best for short runs of expensive luxury brochures
Images:
Manufacturer: Fujifilm
Model: 750s
What’s the difference between a 720S and the new 750S? Primarily a set of improvements that have a combined effect of considerably boosting productivity. The 750S has the latest high-speed Fujifilm Dimatix Samba piezo printheads, allowing it to print up to 3,600 B2 sheets per hour compared with 2,700sph on the 720S. Revised cleaning routines only take three minutes every two hours.

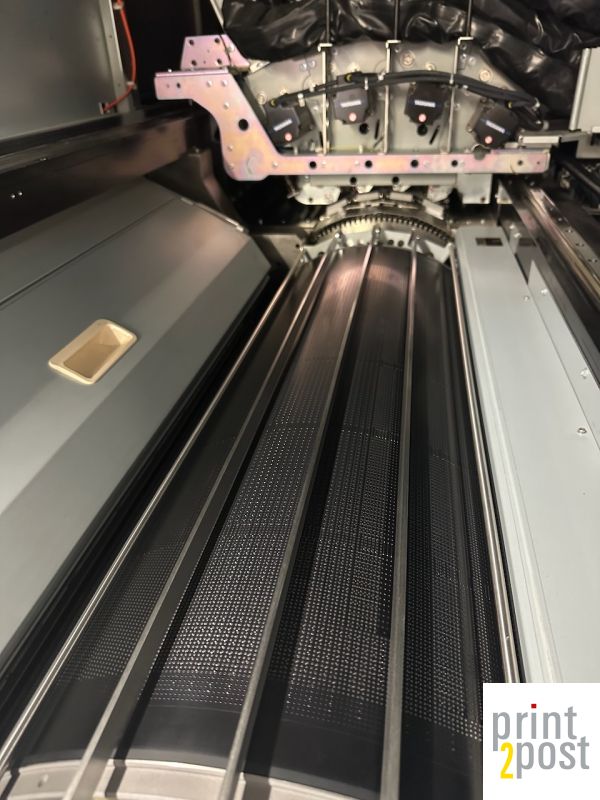

A new all-IR drying system with a heated vacuum belt is both faster and saves 23% of electricity use. The drying stability of the vacuum belt allows paper down to 80 or 90gsm depending on ink coverage. It also means the second side can be put through quicker.

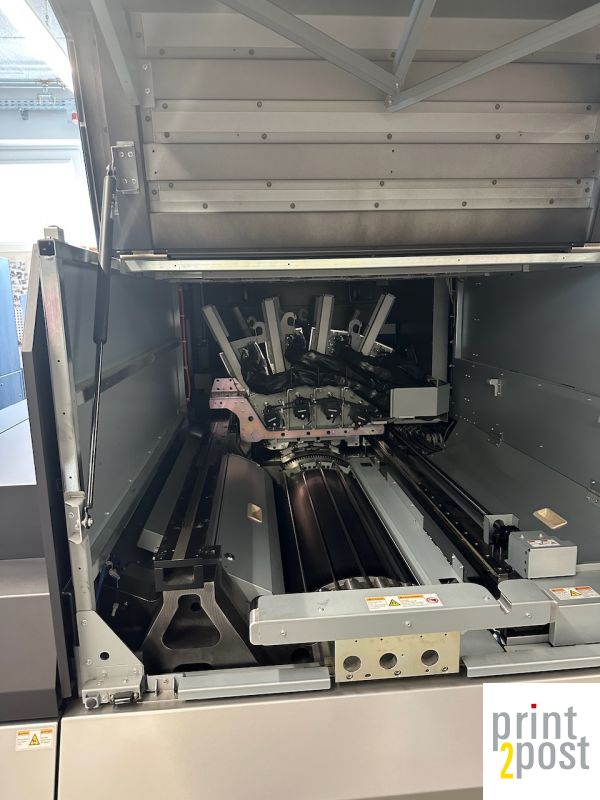

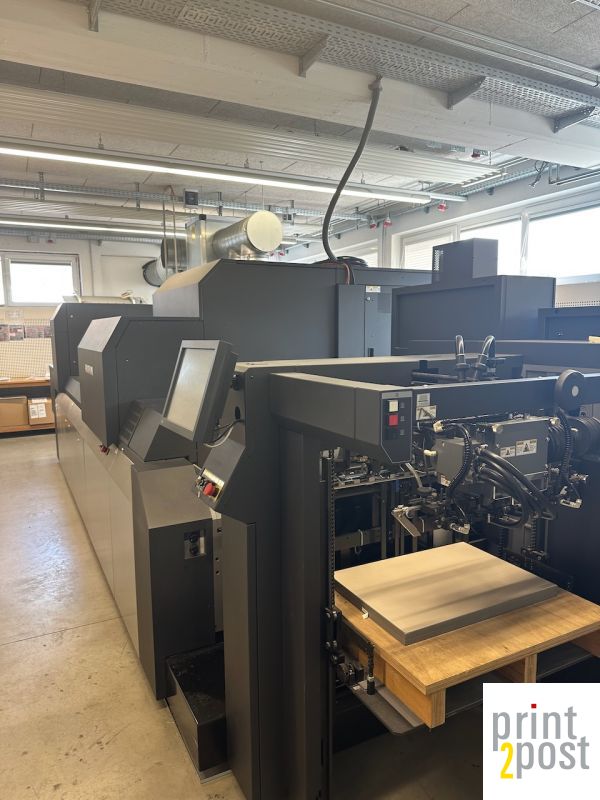

The 750S is, like the 720S, based on an RMGT (Ryobi) offset press chassis with litho-style feeders, grippers and delivery. It’s simplex only, but can put a barcode on the back surface that’s read on the second pass so the correct image is called up from the RIP and positioned accurately.

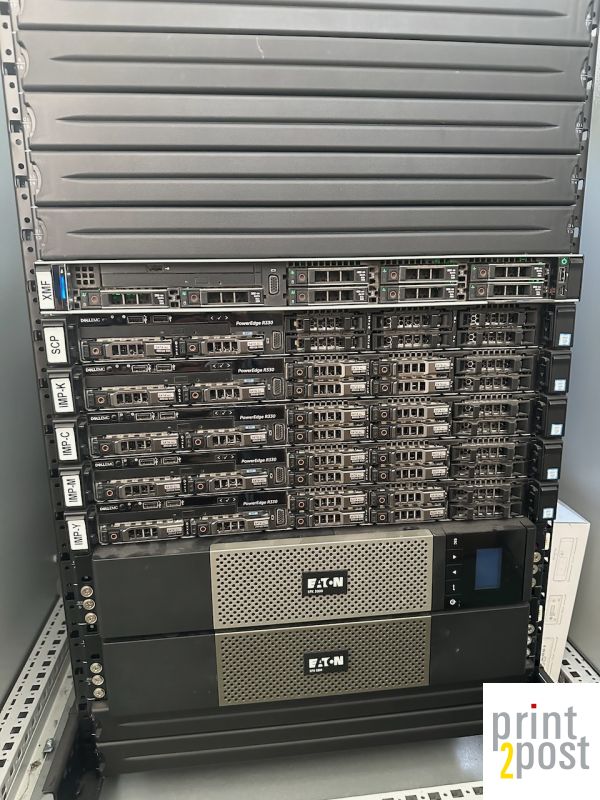

The wide-gamut Fujifilm Vividia aqueous inks are the same on both presses. Also the same is the Fujifilm XMF digital front-end and RIP, although new server hardware came with the 750S.
The sheet size is increased marginally to 750x585mm, allowing six US Letter sized pages to fit, but not six A4s. “It’s rare to use the full sheet size. You could get five A4s on a sheet, but there’s no great advantage – there’s no click charge and no real savings because you’d have to take SRA1 sheets and cut them down.”
SPECIFICATIONS
Process Single-pass inkjet
Max running speed 3,600sph simplex
Resolution 1,200x1,200dpi
Printheads Fujifilm Dimatix Samba
Print units CMYK plus primer

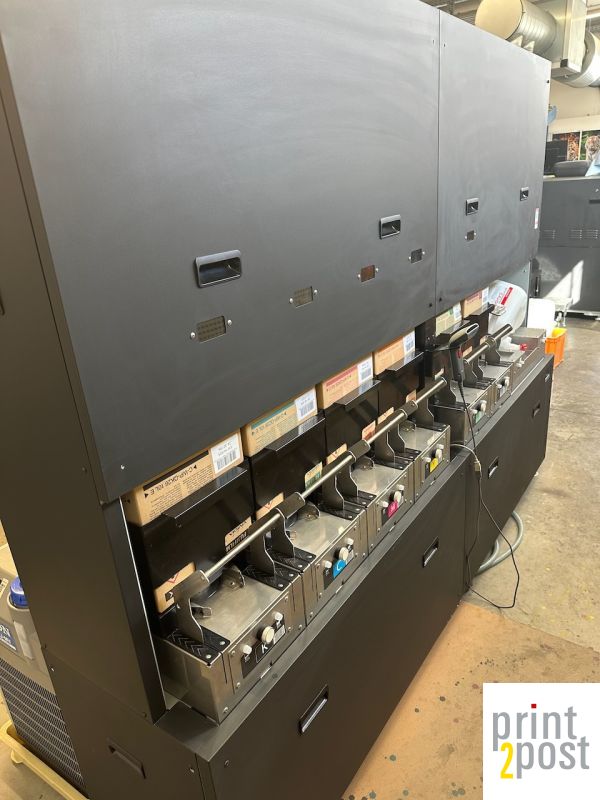

Inks Fujifilm Vividia aqueous plus primer
Max sheet size 750x585mm
Paper thickness 0.09-0.34mm (with carton configuration, 0.2-0.6mm)
Front end Fujifilm XMF workflow V6
Footprint 7.35x2.65m
1st Installation: 2022

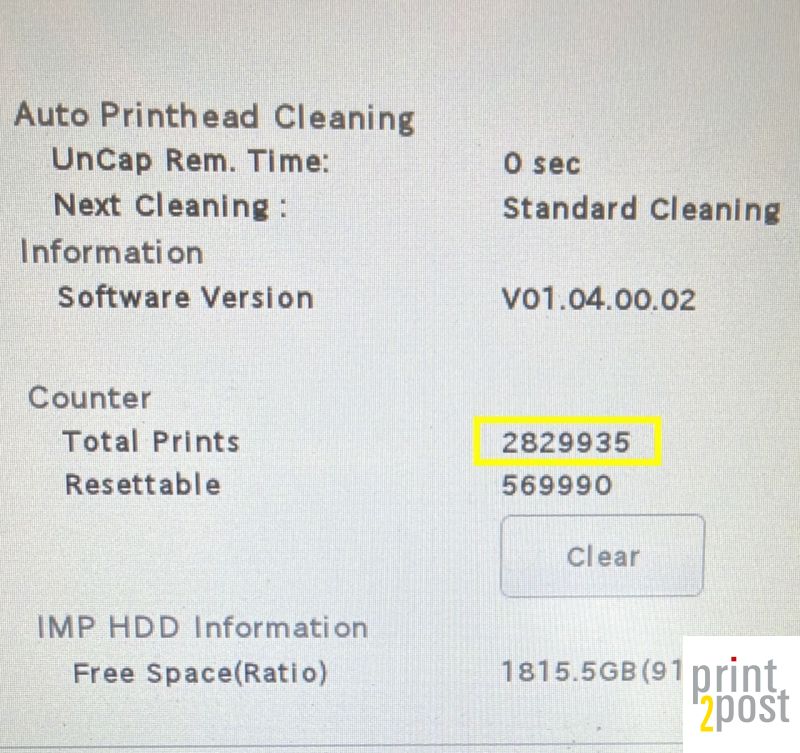

Counter on 26 Feb. 2025: 2,8 Mio.
Status: installed and in operation
Availability: 8 to 10 weeks from order
Price in EURO: Request a quote
