includes inline camera inspection + jet out correction + RIP
Images:
Manufacturer / Model:

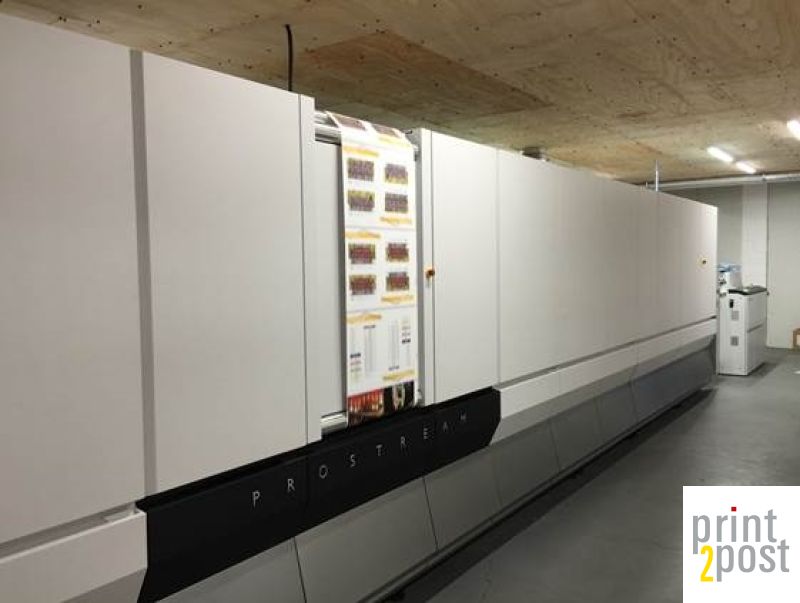

Océ ProStream
Type:
ProStream 1000
From an article by David Zwang of WhatTheyThink:
The ProStream is a continuous feed production inkjet system targeting the mid-to-high volume commercial printing market. The device leverages Océ technology from its previous continuous feed systems as well as the its sheetfed Océ VarioPrint i300. With this press, Canon is also introducing a new water based, higher pigment polymer ink set that exceeds the offset gamut of FOGRA 51. While Canon has yet to define the size of gamut increase, it will undoubtedly mean that the inks will support a wider range of Pantone colors. This new imaging system allows the ProStream to support up to a recommended 350% ink coverage on coated media. The new polymer ink was designed to form a “glue layer” which keeps the pigment closer to the surface and helps create the larger gamut and better bonding of the pigment to the media, giving it better rub resistance.
The press has a modular engine design currently operating at 262 ft/min. It supports a print width of 21.25 in, and a paper width of 22.25 in. Canon is currently building its certified media list for the press; currently the press can support weights up to 104 gsm (70 lb. cover). It has a duty cycle of up to 37 million letter sized impressions per month.
Controller / RIP / Frontend:
SRA MP controller with latest Adobe APPE
PRISMAcontrol DFE or PRISMAproduction output management system
Ink:
ColorGrip conditioning fluid, polymer pigment ink set CMYK with InkSafe technology
PrintHeads:
40 KHz
Printing Speed:
up to 80m/min. / 1076 A4 ppm
Web Width:
406 - 558 mm (21.89 inches)
Physical Print Width:
556 mm
Substrates:
Offset coated floss, matt, silk, uncoated, inkjet
Paper Transport:
pinless, tight web, automatic tension control
Print Resolution:
1200 x 1200 dpi perceived image quality with 600x480 dpi with Multilevel dot modulation
Option 1:

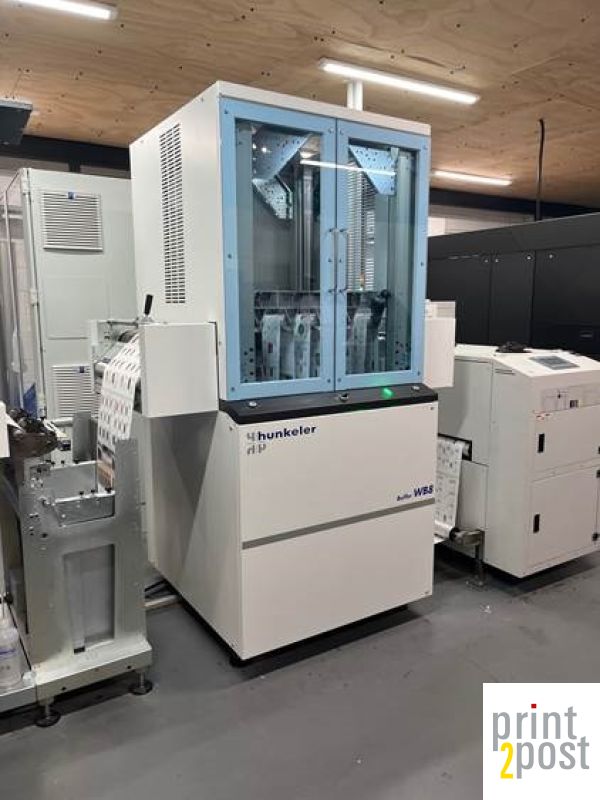

Hunkeler V8 Unwinder

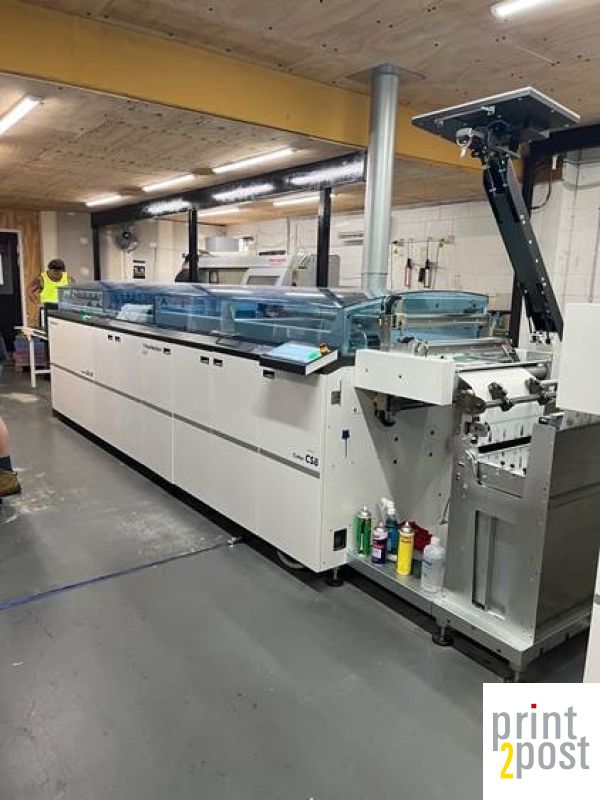

Longsheets stacker
inline perfing wheels
Buffer

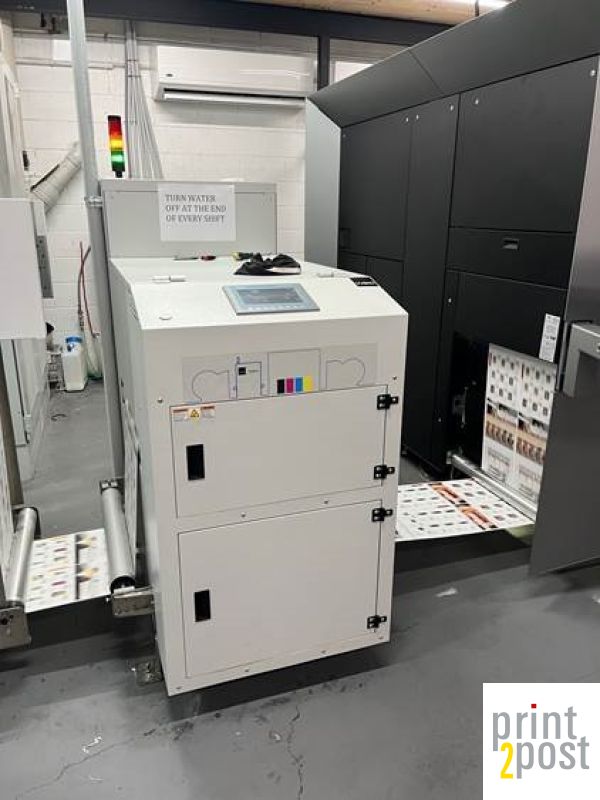

Weco Paper conditioner
Option 2:

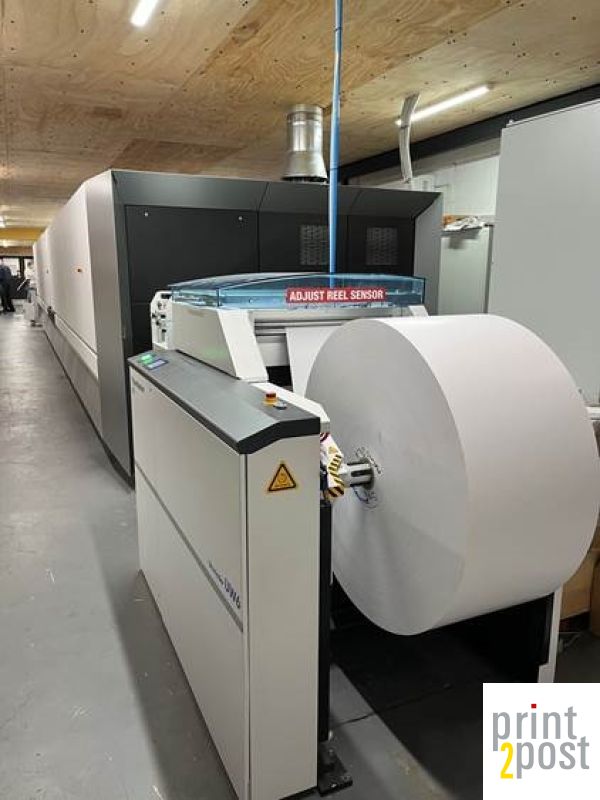

Hunkeler UW6 RW6 POPP6 Unwinder/Rewinder
Power Requirements:
400V, 63A (one per tower) 50 Hz
1st Installation:
12/2019
User Counters overall:
both Towers show approx 30 Mio. feet each
Status:
installed and in operation
Canon maintained
Availability:
4 to 6 weeks from order
ex works:
customer site non EU
Sales Price in EURO:
Request a quote
Notes:
manufacturers brochure:
Technical Specification
