includes NIR dryer with low-heat
SC ink for direct inkjet printing on offset coated paper
Images:
Manufacturer / Model:

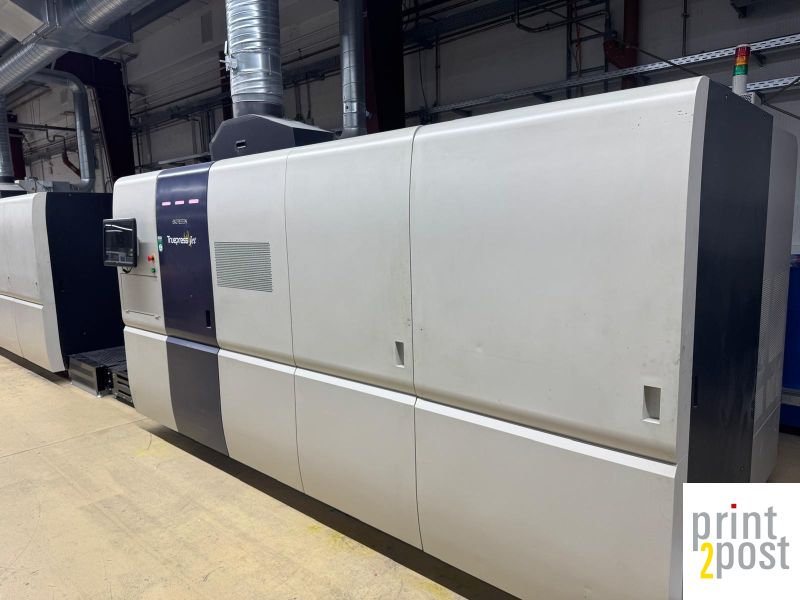

SCREEN Truepress
Model:
TP520 HD
Controller / RIP / Frontend:
EQUIOS: PS, PDF, PDF/VT (standard)
IPDS Controller: AFP/IPDS (optional)
according to Screen free transfer of installed software is questionable and may cost
Resolution:
max. 1200 x 1200 dpi
Ink:
SC+ inks are proprietary water-based inks designed to print directly onto offset coated paper.
Option:
Hunkeler POPP6 Winders, DP8 Perforator
Printing Speed:
Max. 150 m (492')/min. (with option)*
Paper Transport:
pinless, tight web, automatic tension control
Media Width:
165 to 520 mm (6.5" to 20.4")
Printing Width:
150 to 508 mm (6" to 20")
Media thickness:
40 to 250 gsm (up to 157 gsm for the speed of 150 m/min.)*
Power Requirements:
Three phase 200 to 240 V, 25A / 380 to 440 V, 15A
1st Installation:
2018
User Counters overall:
see foto
Status:
installed, may be viewed in operation at German customer site until 8 August 2025
Availability:
August 2025
Please ask for video of complete line in operation
ex works:
customer site EU
Sales Price in EURO:
Request a quote
Notes:
manufacturers brochure:
Technical Specification
