Dual Engine Duplex Press
Option: buckle folder roll-to-cut
Images:
Manufacturer / Model:

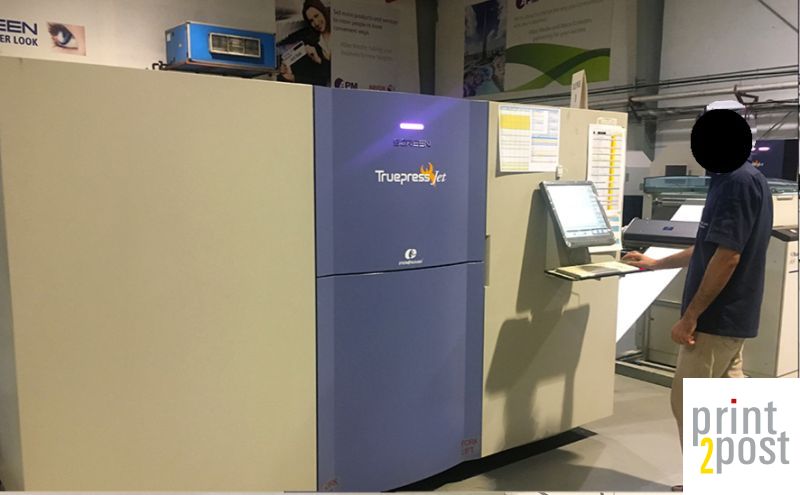

SCREEN Truepress
Model:
TP-520 Z
Controller / RIP / Frontend:
SCREEN EQUIOS Rip SV110
Ink:
water-based dye ink
Printing Speed:
360x360dpi: 8～128m/min
720x360dpi: 8～ 64m/min
720x720dpi: 8～ 32m/min
Paper Transport:
pinless, tight web, automatic tension control
Paper Width:
165 to 520 mm
Printing Width:
150 to 506 mm
Power Requirements:
Three phase 200 to 240 V, 25A / 380 to 440 V, 15A
1st Installation:
2013
User Counters overall:
below 30 Mio. meter per engine since original installation
Status:
installed, may be viewed in operation
Availability:
can be dismantled upon order
ex works:
customer site Near East
Sales Price in EURO:
Request a quote
Notes: Please ask for video of complete line in operation
manufacturers brochure:
Technical Specification
