get a working Brenva for the price of the PrintHeads, installed and in operation
Images:
Manufacturer / Model:
Xerox
This is Xerox’s first sheetfed production inkjet machine. The first thing you notice when you see this new press is that it looks
remarkably like the iGen, and it should. Instead of developing a completely new press design, Xerox decided to stick with something
that works and has been very successful. As a result, it was designed on the very familiar and reliable iGen paper path transport
chassis. It is approximately the same length as the iGen which, like the Trivor, should help take the floor space equation out of the
decision process.
The Brenva is a duplex press that supports printing up to a B3+ ( 14.33 x 20.5 in) sheet, with a top speed of 197 A4 images per minute.
It is positioned to produce ‘business color’ and ‘light direct mail’ quality, similar to the Rialto, which makes sense since they both use the
same 600 dpi Kyocera KJ4B printheads, imaging technology and aqueous based inks. The four print bars have dedicated motors to control
roll and stitch, and the press is constantly monitoring and adjusting the printheads as needed to maintain optimal alignment and quality.
The imaging system supports variable drop sizes, allowing for multiple size drops to be placed at any pixel location, increasing the print
quality and creating smoother lines as desired. It also uses the Intelligent Scan Bar technology to identify and compensate for missing jets.
There is an inline spectrophotometer which automatically reads target charts generated during the linearization and profiling of new media.
The transport is also configured with advanced registration and dynamic belt steering which senses correct sheet position when entering
the marking area to eliminate lateral movement under the print heads.
Config:

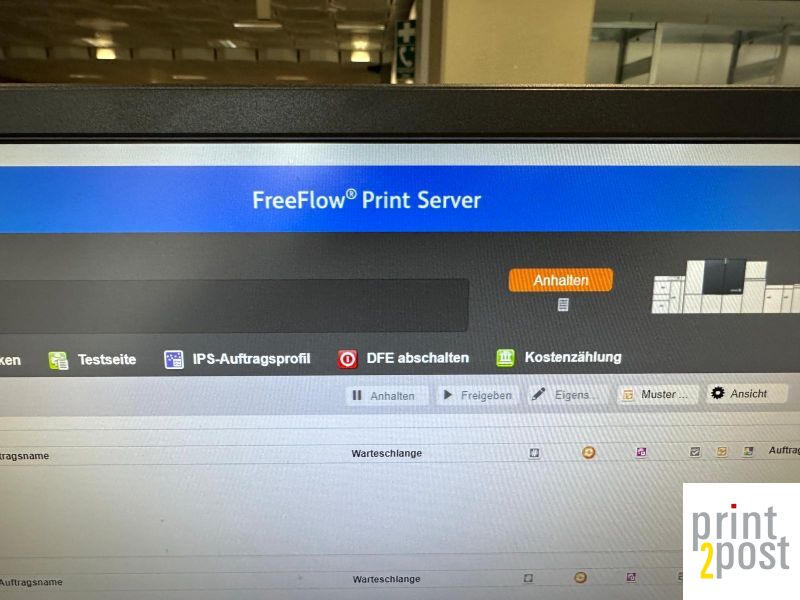

Free Flow Print Server (T630)
Xerox Production Stacker
Feeder XXL - no Bypass
Feeder XXL Top Tray - with Bypass
HD Ink Licence
FFPS IPDS Software Licence
Frequency:
50 Hz.
1st Installation:
tba
Clicks / Counter on 26 April 2024
Counter Mono: see foto
Counter Color: see foto
Status:
installed and in operation
Availability:
July 1, 2024
Price in EURO:
Request a quote
manufacturers brochure:
Technical Specification
