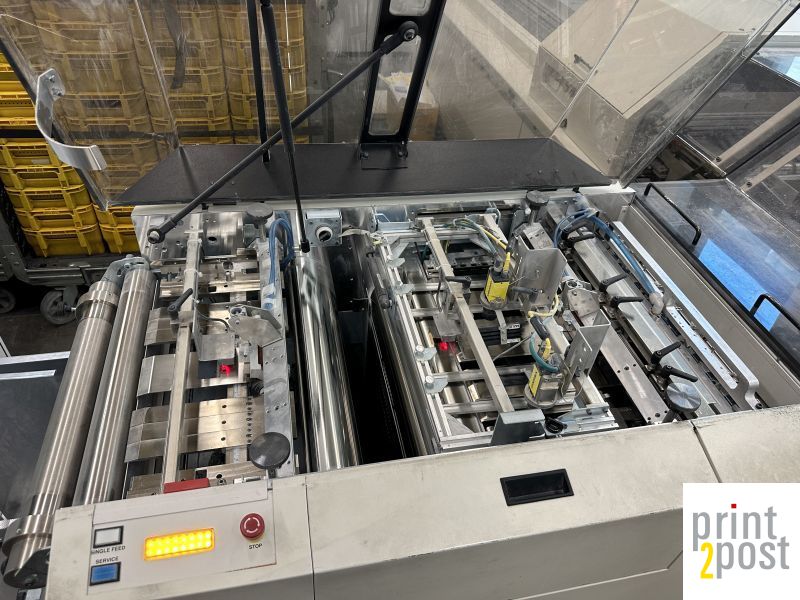

BlueCrest EPIC 22, feeder 50K+ cutter Y484 72K, stitcher, YOM 2015/2017

Images:

Modell:
EPIC 22K

Configuration:
2 channels cutter+feeder, 6 enclosure stations on a 6 station EPIC chassis,
8 station buffer / double accumulator, P2L & TnT, turn over, 3 check bins (one with conveyor)

Envelope sizes:
C4 (no folding unit)
1-75 docs/env.

Speed in env/h:
22.000

1st channel:
HiCap 50K (North) Cognex Camera

2nd channel:
Cutter pinless Y484 Cognex camera 2-up (West) 72K, Hunkeler UW6 unwinder with VU 150m, right version

Enclosures:
6 (no extra reading, 3x friction, 3x rotary station)

Number of check bins:
2

Extras (included):
WINDOWS 7
closed loop with Pitney Bowes InSight
automatic format change
Hunkeler UW6 VU 150m right version
vertical stacker + conveyor

Option (not included):
compressor Boge DS9 230/1/50 (2 units for 3 inserters, one is backup)

Frequency:
50hz + (60hz.possible for US market, needs minor adaption, exchage of vacuum pumps and power boxes)

1^st Installation:
2015 / 2017 from stitcher on

Clicks/envelopes in Mio (per 08/23)
main counter: 19.215.314
feeder 112.093.438
cutter: 443.118.652



Status:
installed

Availability / ex works:
around 06/24 / EU

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

layout:
click here

p2p-ID:
pb_epic_03
