Dual Engine Duplex Press for full color printing

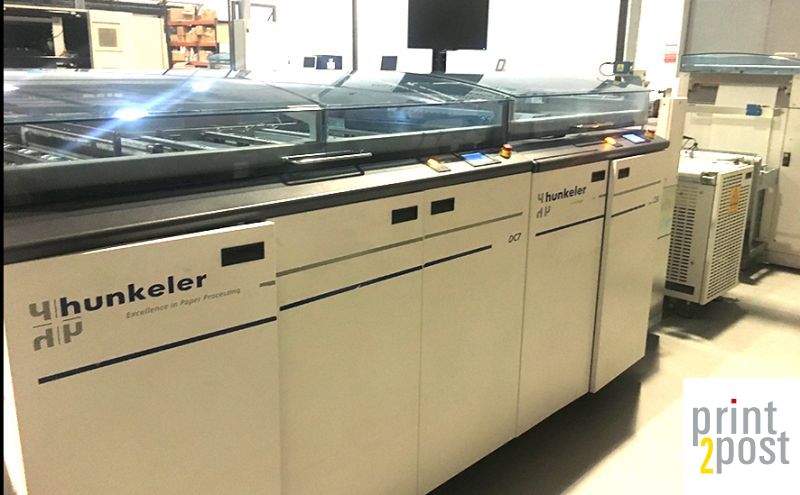

Option: Hunkeler/Heidelb buckle folder roll-to-cut

Images:

Manufacturer / Model:
SCREEN Truepress

Model:
TP-520 Z

Controller / RIP / Frontend:
SCREEN EQUIOS Rip SV110

Ink:
water-based dye ink

Printing Speed:
360x360dpi: 8～128m/min
720x360dpi: 8～  64m/min
720x720dpi: 8～  32m/min

Paper Transport:
pinless, tight web, automatic tension control

Paper Width:
165 to 520 mm

Printing Width:
150 to 506 mm

Power Requirements:
Three phase 200 to 240 V, 25A / 380 to 440 V, 15A

1st Installation:
2013

User Counters overall:
below 30 Mio. meter per engine since original installation

Status:
installed, may be viewed in operation

Availability:
can be dismantled upon order

ex works:
customer site Near East

Sales Price in EURO:
Request a quote

Notes:  Please ask for video of complete line in operation

manufacturers brochure:
Technical Specification
