Hunkeler bookletmaker CS6 - 1, Heidelberg folder SOLD

Hunkeler / Heidelberg booklet solution
UW6, LC6, CS6 - 1, DC7, TH66, SAL66

Images:

line consists of the following modules:

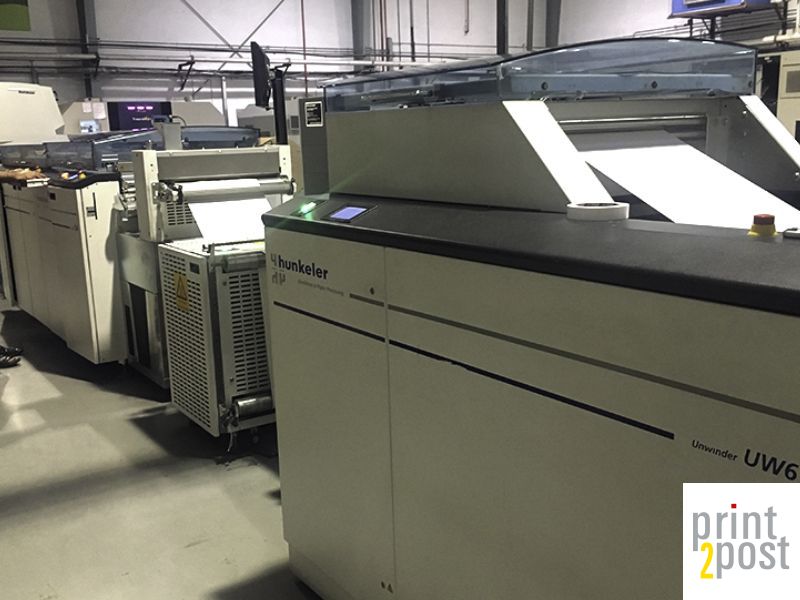

UW6 - 150m  unwinder with airshaft 70mm, compressor
web dryer device
LC6 loop control
CS 6-1 cutter pinless for 2-up, print mark reader

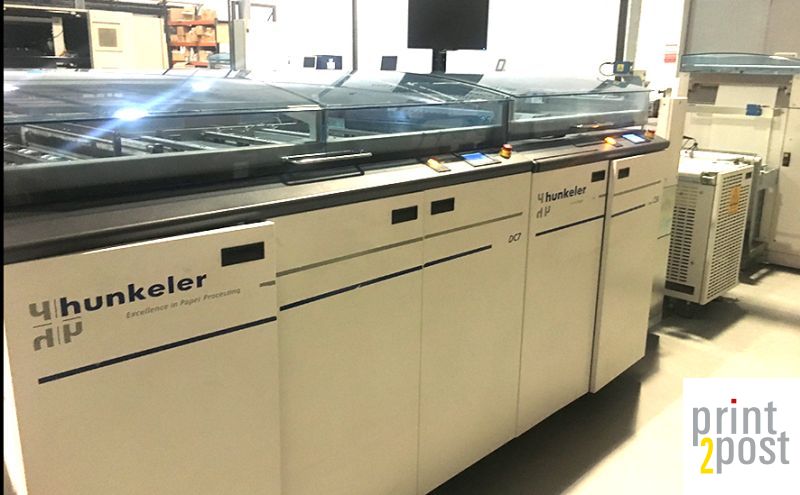

DC7 drum collator

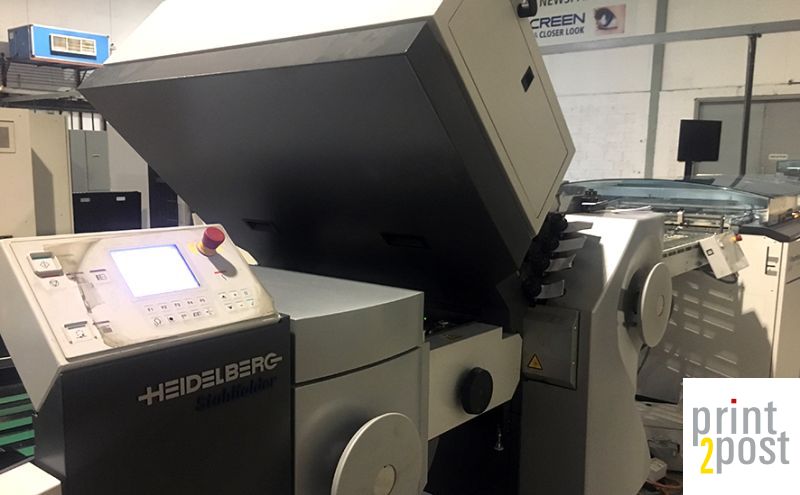

TH66 Heidelberg Stahlfolder buckle folder with 4 buckle plates
SAL66 stream delivery short

specifications:
paper weight:        40-120gsm
paper web width:  min. 279mm, max. 520mm
sheet lenght:        min. 279mm, max. 810mm
speed:                  150m/min dep. on paper weight
stack height DC7: 2 - 24 sheets
folding capacity:   2 - 12 sheets news printing dynamically
                             12 - 24 sheets news print statically

Transport:
pinless

Speed in m/min:
up to app. 150

Extras (included):
airshaft 70 mm, slit knife

Option (not included):
200mm airshaft diameter,

Frequency:
50 Hz.

1^st Installation:
2013

Mileage:
app. 27 Mio clicks

Status:
installed

Availability /ex works:
imm / EU

p2p-ID:
cs6_150_05

Price in EURO:
Request a quote

manufacturers brochure:
click here
click here
