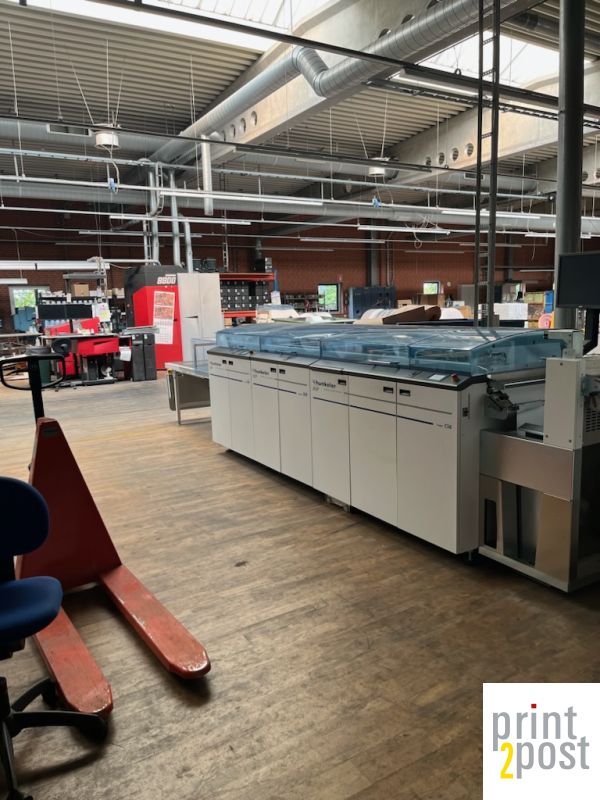

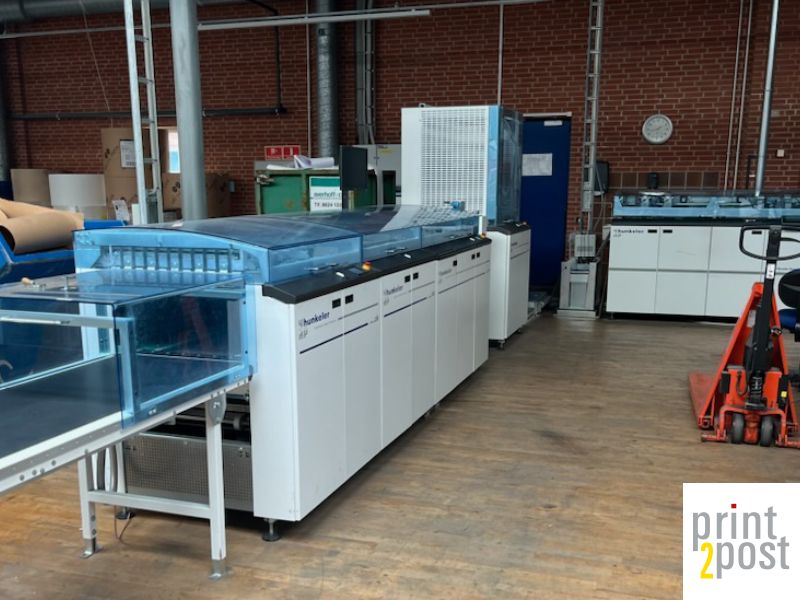

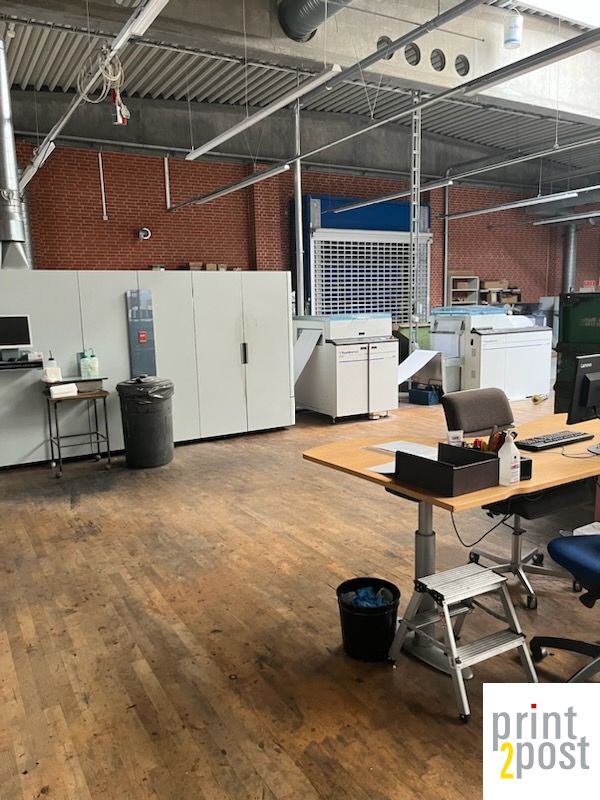

Hunkeler roll 2 stack w CS6-2+RW6, (21) SOLD

complete Hunkeler line w CS6-2 for 2-up
speed 150m/min, roll 2 stack + roll 2 roll

Images:

Manufacturer / Model:
Hunkeler  / CS6 - 2, double cut, 1x slit knife + side trimmers

line consists of the following modules:
unwinder UW6 VU 150m
processor PP6 7507

RW6 R4 20"

and/or with switch

webbufer WB6
cutter CS 6-2 7184 cutter pinless, for 2-up, 150m/min,
separating section SE6
stacker LS6 7191
conveyor TB6 2m

webwidth:                330mm - 520mm (13"-20,5")
paperweight:           60 - 180gsm
doc length (stack): 140mm - 355mm, single doc 203mm - 1.574mm
Transport:                pinless
Speed in m/min:      up to app. 150m/min

Extras (included):
airshaft for UW6 70mm

Option (not included):
TS6 transfer station

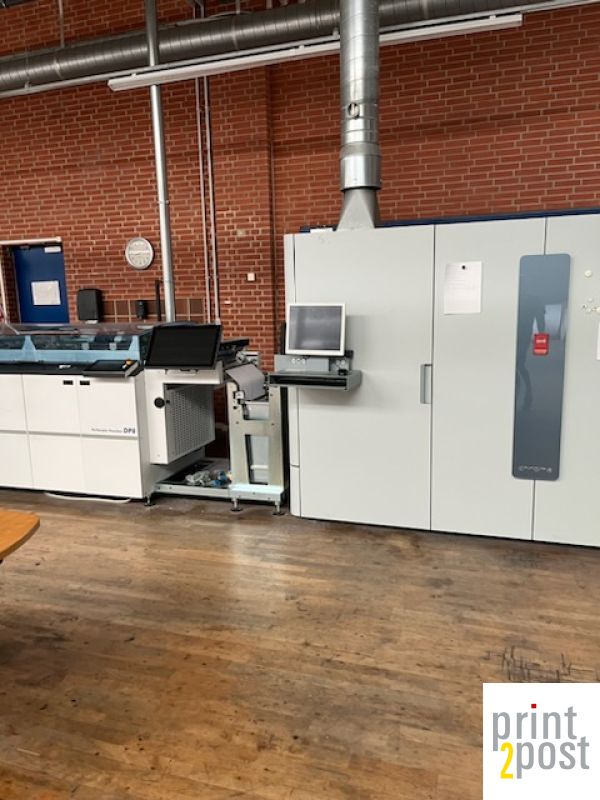

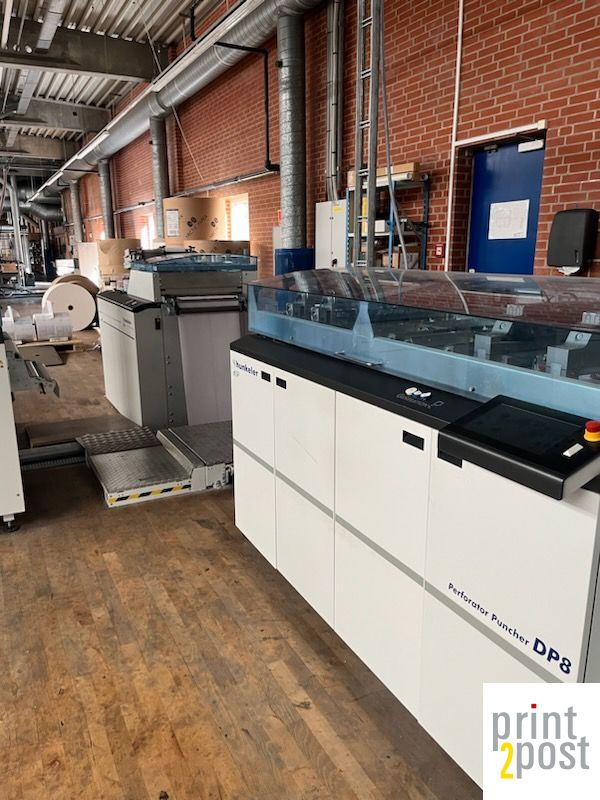

DP8 + LC8

TRESU Coater (never used)

 LI4 interface
weko rfdi moisturizer
Loop control Type: LC6-S 7188, YOM 2018
external vacuum unit VU6-800 or VU6-1200
WM6 UNEVEN 71 or EVEN

180 degree floor turn station

Frequency:
50 Hz and 60Hz (works also e.g. in the US)

1^st Installation:
2018

Mileage:
4.260h

Status:
still installed (testing possible)

Availability / ex works:
Jan 24 / EU

Price in EURO:
Request a quote

manufacturers brochure:
click here

machine's layout:
click here

p2p_ID:
hu_cs6_21

video:
