CMC 400 Evolution, 8 stations YOM 2017, camera reading

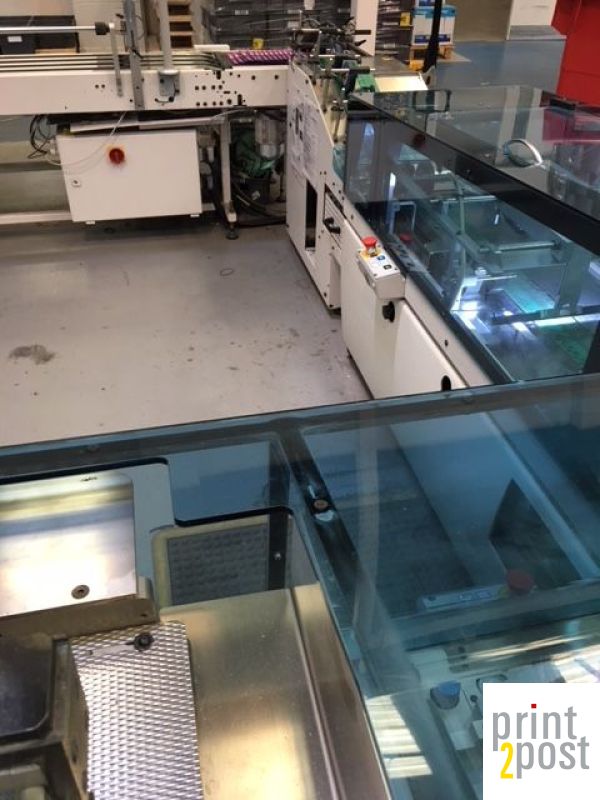

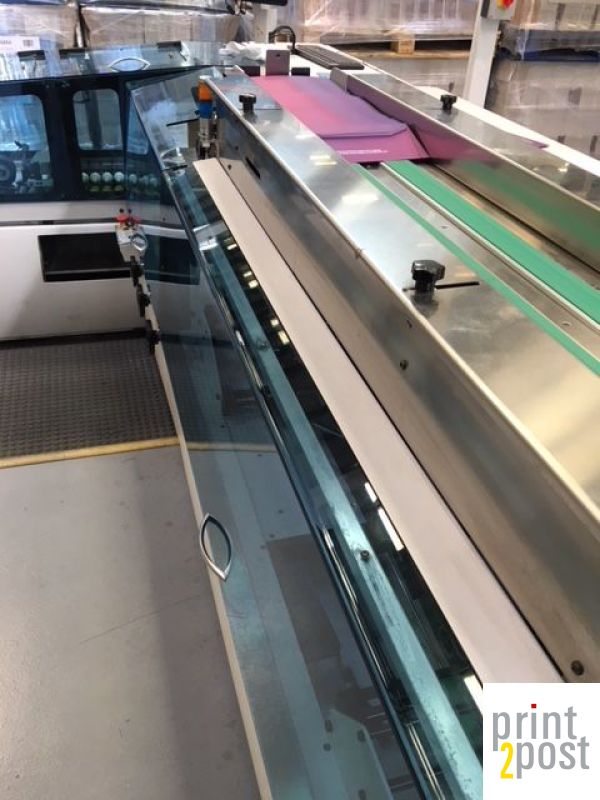

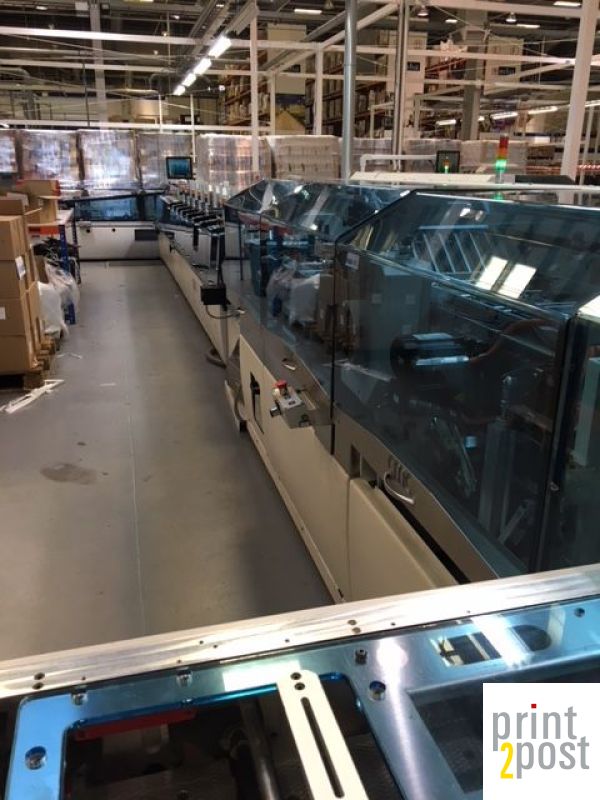

CMC 400 Evolution inserter
cutter, feeder, 8 stations feeders, Camera reading

Images:

01
02
03
04
05
06
07
08
09
10
11
12
Cmc 401 Icon


Manufacturer / Model:

CMC / 400 Evolution

Configuration:
Twin channel, 8 enclosures

Envelope sizes:
C5 + DL

Speed in env/h:
22.000 gross
18.000 gross 6" x 9"
8.000 gross 9" x 12"

envelope sizes:
4” x 7” (Min.) 10” x 13” (Max.)



1st channel:

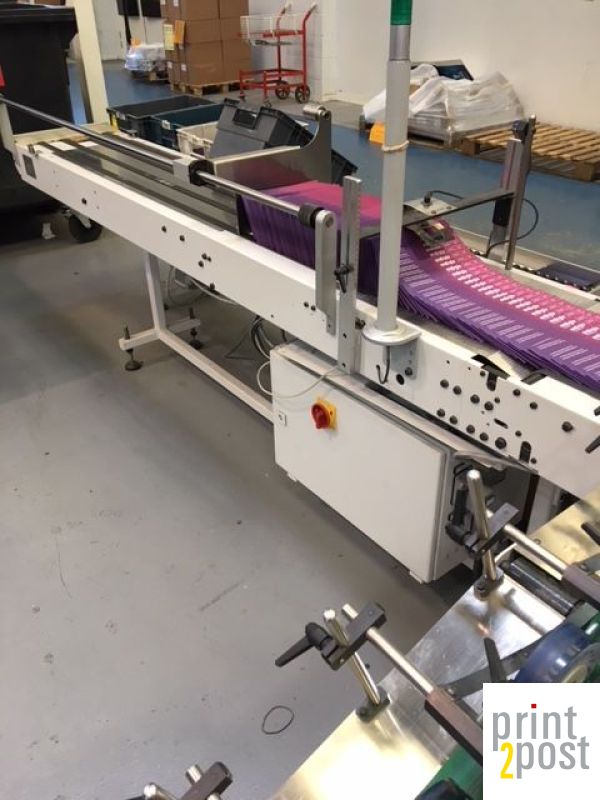

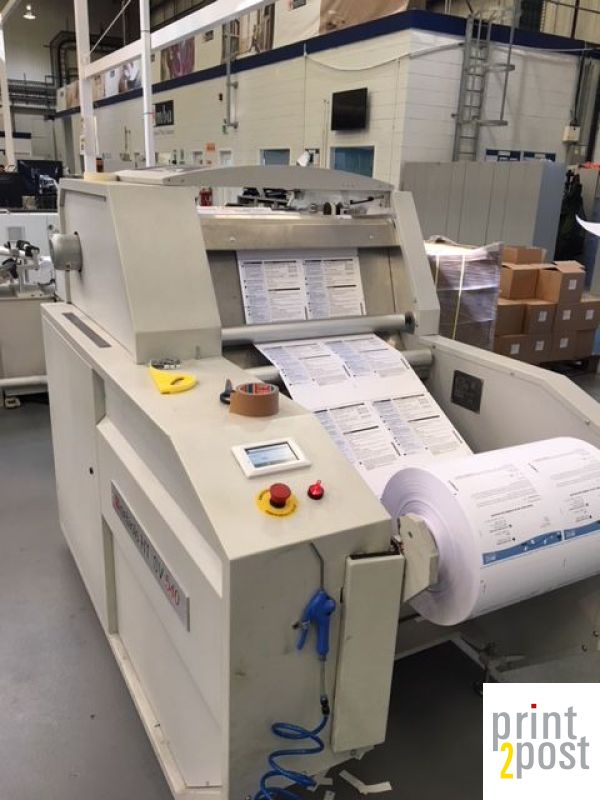

contiuous cutter (East) with 2-up merger UTD_90 pinless + pinfed, including unwinder Nebiolo S520
reading: 1D, 2D, OCR, OMR


2nd channel:
cut sheet, high level Bulk loader (North), capacity app. 6.000 sheets, max. 65.000 pieces/hr
High Speed A4 feeder for portrait and landscape, max. 50.000 sheets/hr
reading: 1D, 2D, OCR, OMR

Folder:
Folder with dynamic variable lenghth folding capacity, up to 8 sheets DL at 70gsm

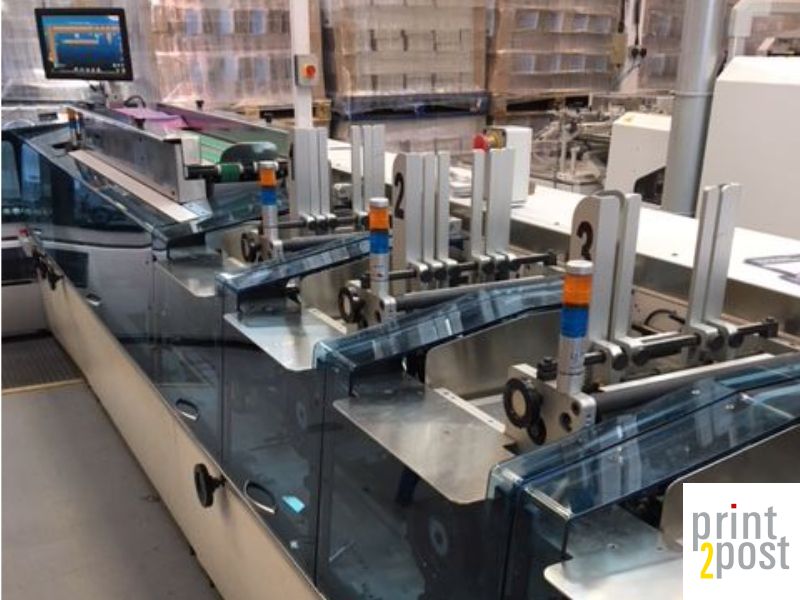

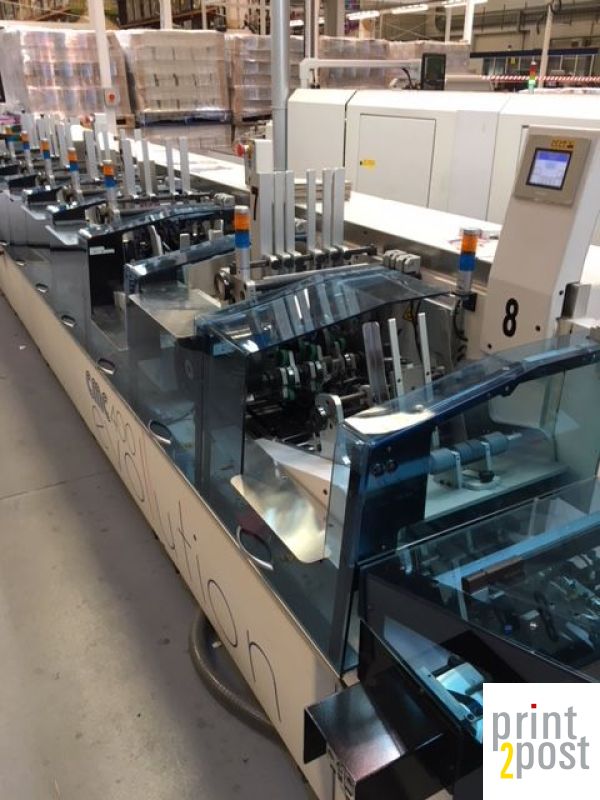

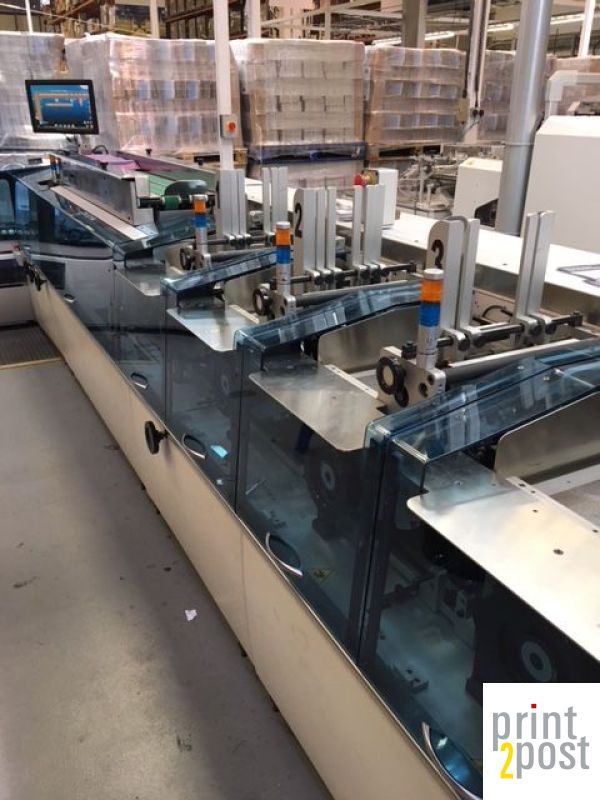

Enclosure station:
8 (6x rotary, 1x friction, 1x shuttle) , all with tracking sensors

Extras (included):
Nebiolo unwinder

Option (not included):
second identical machine at same site

Frequency:
50 Hz.

1st Installation:
2017 (YOM 2016)

Clicks/envelopes in Mio:
110 Mio ea

Status:
de-installed

Availability /ex works:
imm / Europe

Price in EURO:
Request a quote

manufacturer's brochure:

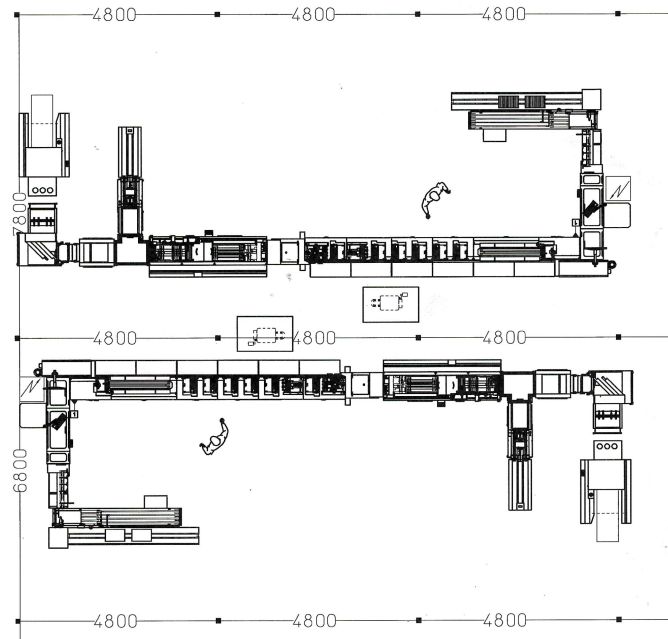

machine's layout:
click here

ref. nr:
cmc_401
cmc_402
2 identical units availbale
