cont. cutter pinless 2-up, vertical stacker,
4 enclosures, Kern unwinder DR6

Images:

 Configuration:

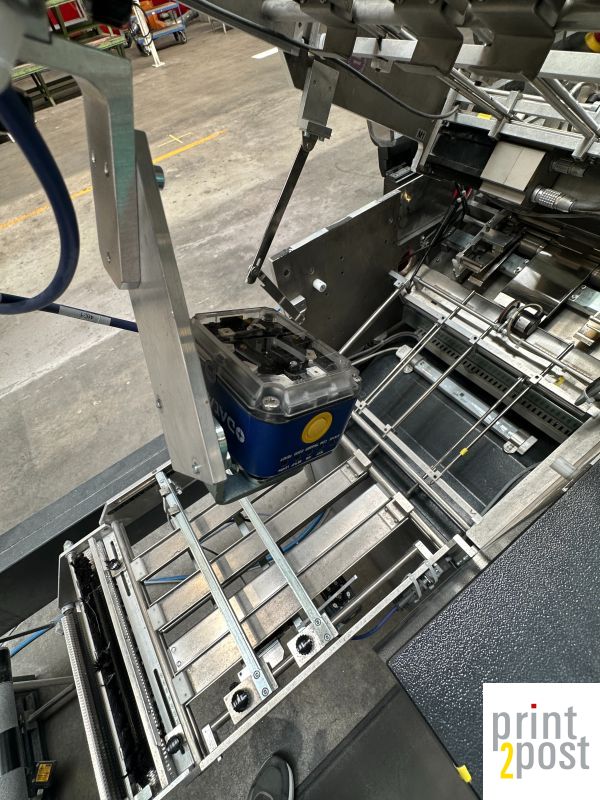

1 channel continuous pinless, 4 enclosures, 2x Datalogic reading form beneath for 2D Datamatrix
single cut block (1/6" or 2/6" as option)

Envelope sizes:
DL, C6, C6/5, C5

Speed in env/h:
22.000 gross

1st channel:
Kern DR6, K945 merger, K995 cutter continuous pinless, reading: 2x DaDatalogic

2nd channel:
no

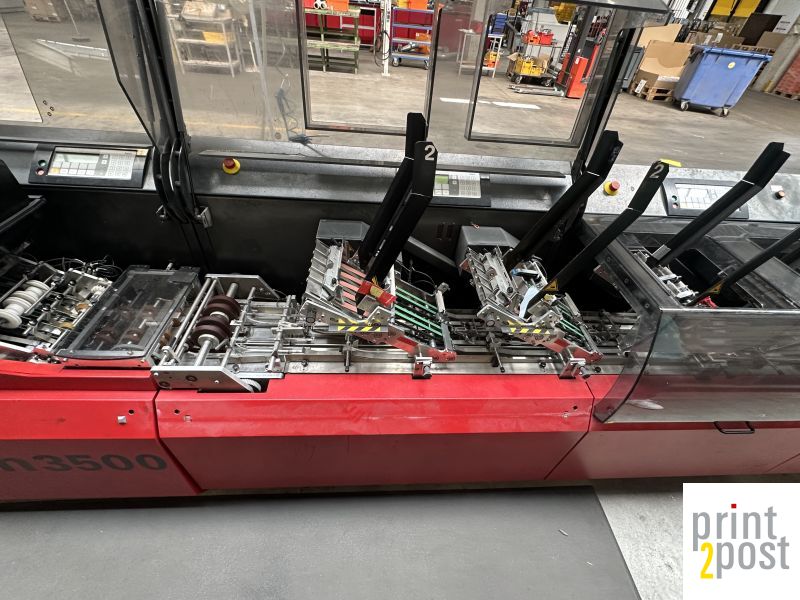

Enclosures:
4 ZSEG/ZSMS/ for 4 stations in total

Number of check bins:
3 incl control reading

Extras (included):

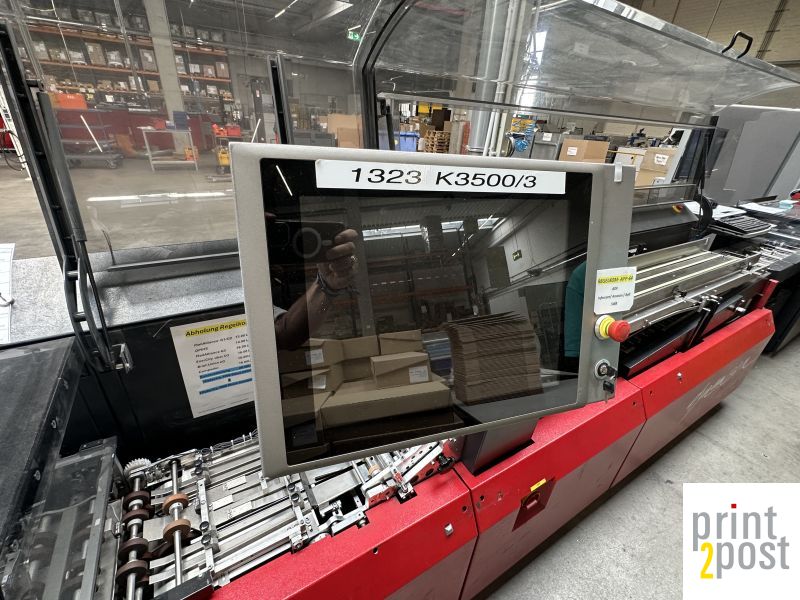

new control monitor

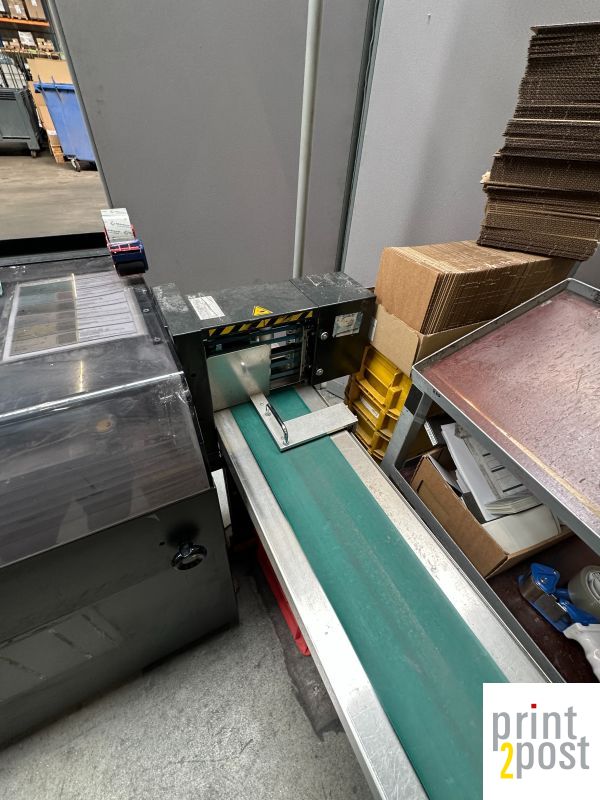

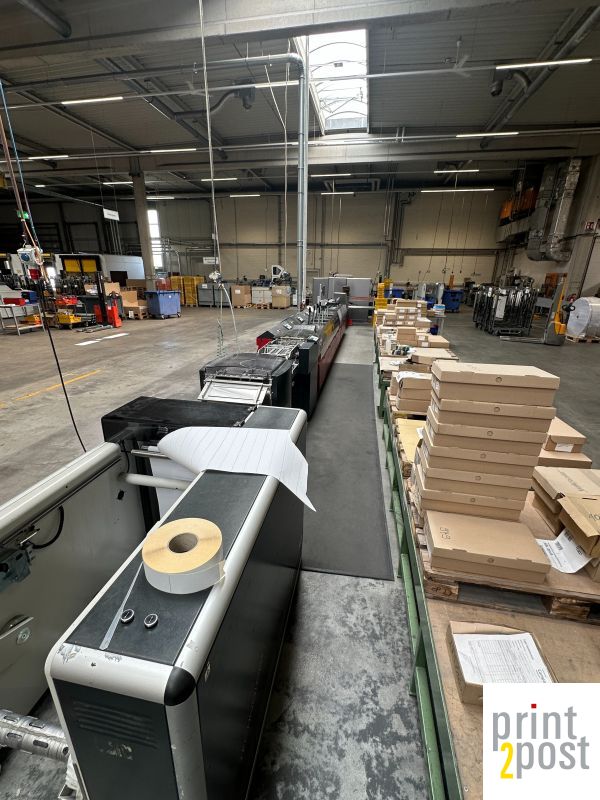

Vertical stacker, conveyor

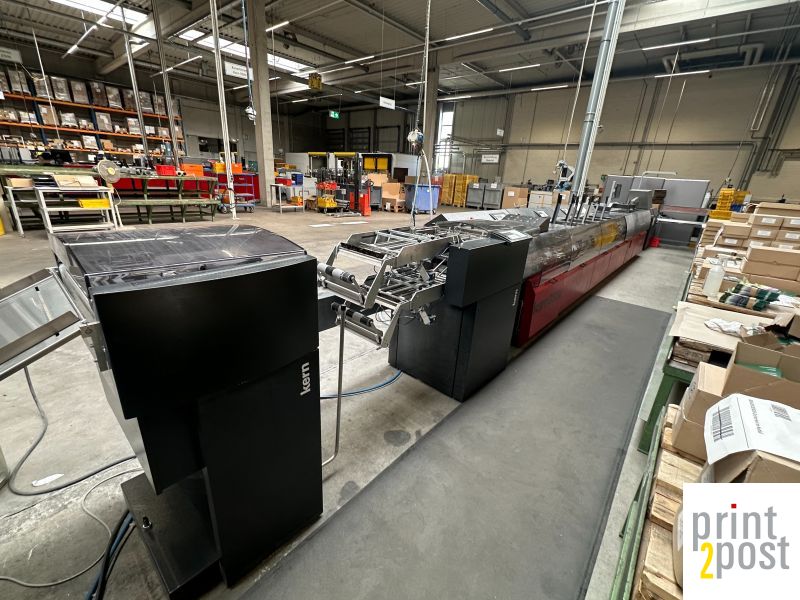

Kern DR6 unwinder with core (left version)

Option (not included):
add. ZSMS enclosure station for station 5+n
unwinder Lasermax LX550 or Hunkeler UW6 150 VU R 7183

cutter/merger PINFED K940/990 with omr
1/6" double cut
2/6" double cut

Frequency:
50 Hz.

1^st Installation:
2008

Clicks/envelopes in Mio:
app. 82 Mio

Status:
de-installed, still at customer's site,
through on-site technician

Availability / ex works:
imm / GE

Price in EURO:
Request a quote

video:
on request

manufacturer's brochure:
the K3500 was designed to meet customer demands for shorter production times, maximum flexibility and the
latest automation. The K3500 inserting system is Kern’s flagship system and your gateway to high speed. Able to
process pre-cut single sheets as well as continuous forms from fanfold stacks. The K3500 adjusts to the application
being run and can produce up to 22,000 mailpieces per hour. Combined with the Dual Channel VSK module and
the K999s high speed cutting system, the K3500 can maintain full rated speed at up to 8 pages per envelope.

machine's layout:

ref. nr:
krn3526
