cont. cutter pinless 2-up, vertical stacker, or PBS, 4 enclosures, Kern unwinder DR6
Images:

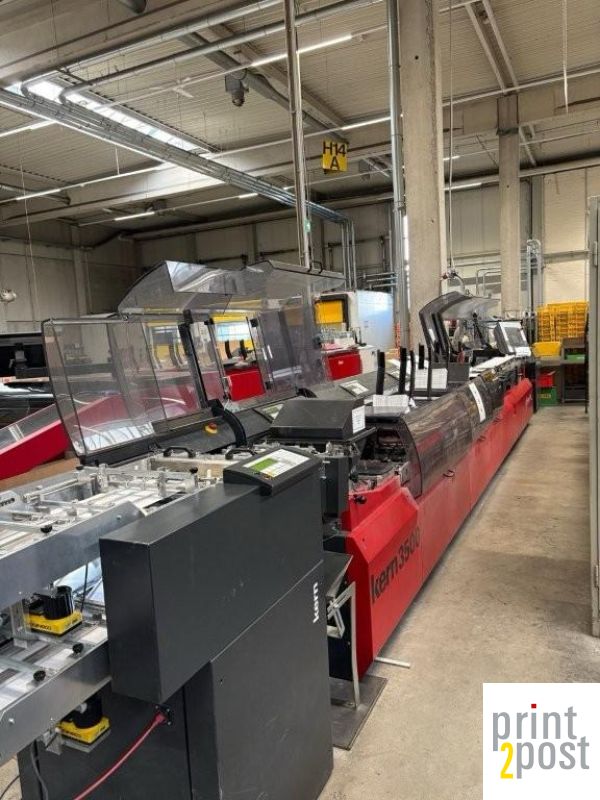

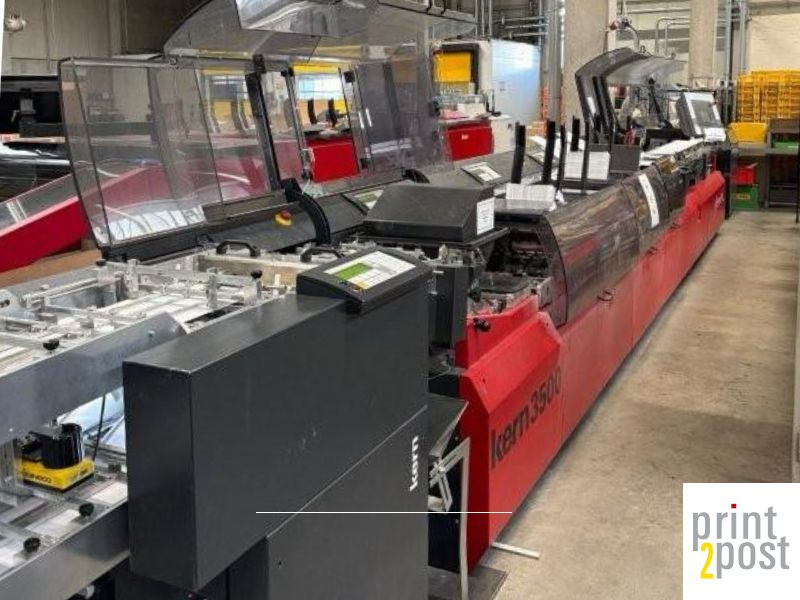

Manufacturer / Model:
Kern / k3500
Configuration:
1 channel continuous pinless, 4 enclosures, 2x cognex reading form beneath for 2D Datamatrix
single cut block (1/6" or 2/6" as option)
Envelope sizes:
DL, C6, C6/5, C5
Speed in env/h:
22.000 gross
1st channel:

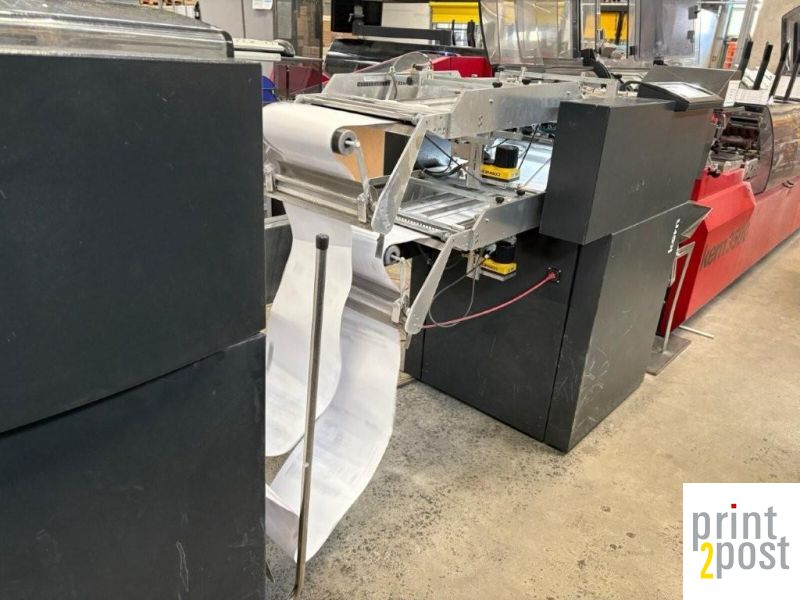

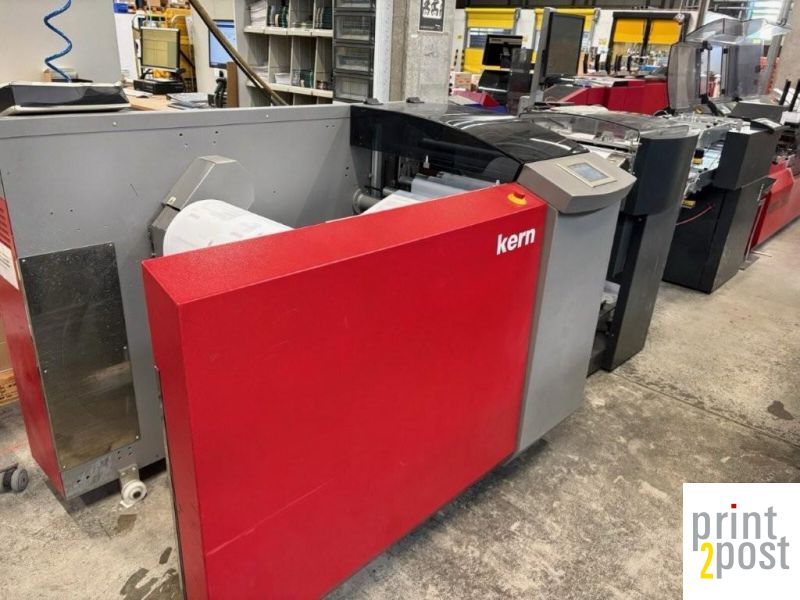

Kern unwinder DR6-S-K55, K945 merger, K995 cutter continuous pinless, reading: 4x Datalogic
2nd channel:
possible as option with VSK, continuos or feeder K971
Enclosures:
4 ZSEG/ZSMS/ for 4 stations in total, 4th station has extra Datalogic reading
Number of check bins:
3 incl. control reading
Extras (included):
new control monitor
Vertical stacker, conveyor
Kern DR generation unwinder with core (left version)
Option (not included):
add. ZSMS enclosure station for station 5+n
unwinder Lasermax LX550 or Hunkeler UW6 150 VU R 7183
cutter/merger PINFED K940/990 with omr
1/6" double cut
2/6" double cut
Frequency:
50 Hz.
layout:
click here
1st Installation:
2007 (yom 11/2006)
Clicks/envelopes in Mio:
app. 82 Mio
Status:
de-installed, still at customer's site,
through on-site technician
Availability / ex works:
imm / GE
Price in EURO:
Request a quote
video:
https://youtu.be/_0rjLJvlau4
manufacturer's brochure:
the K3500 was designed to meet customer demands for shorter production times, maximum flexibility and the
latest automation. The K3500 inserting system is Kern’s flagship system and your gateway to high speed. Able to
process pre-cut single sheets as well as continuous forms from fanfold stacks. The K3500 adjusts to the application
being run and can produce up to 22,000 mailpieces per hour. Combined with the Dual Channel VSK module and
the K999s high speed cutting system, the K3500 can maintain full rated speed at up to 8 pages per envelope.

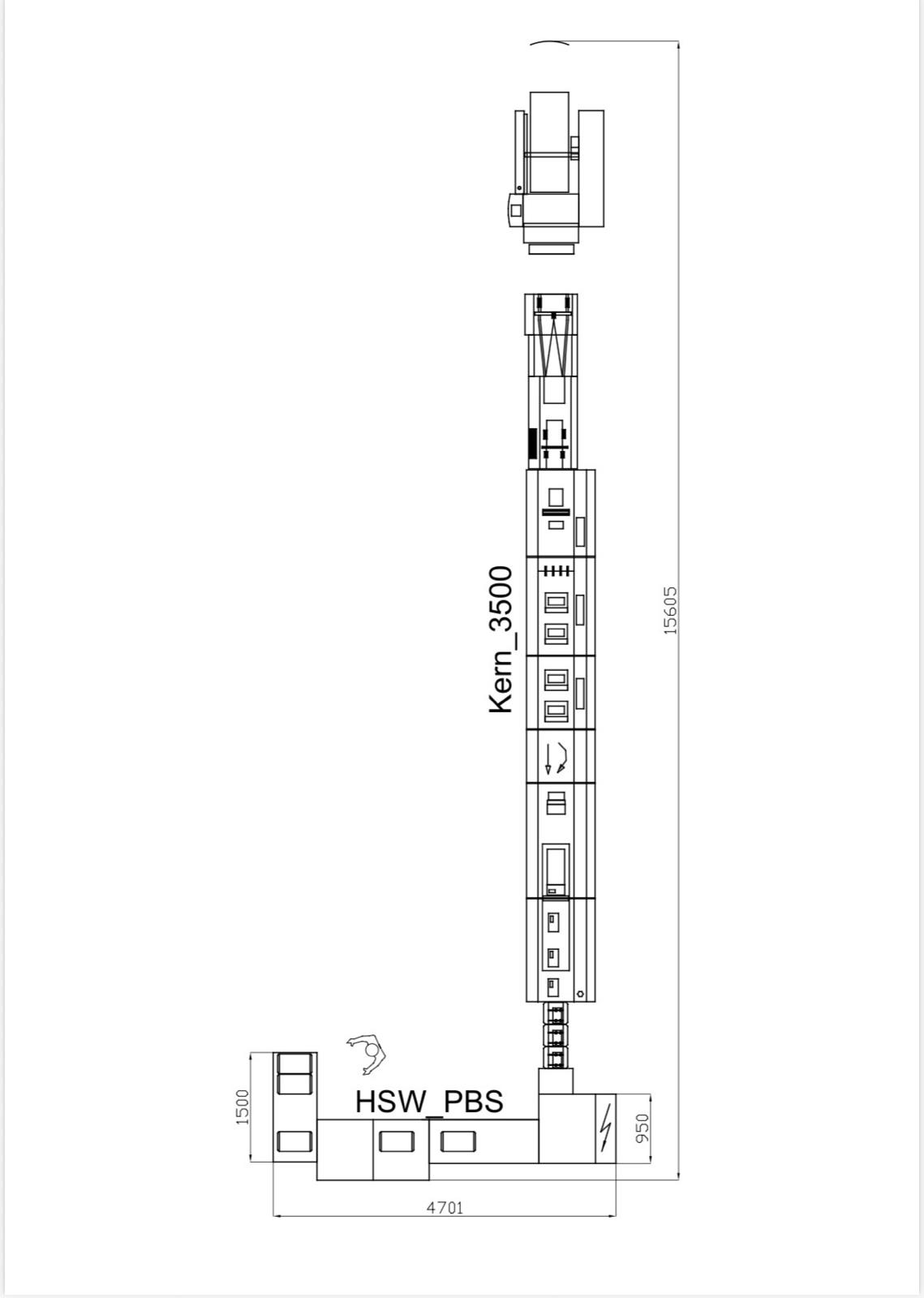

machine's layout:
ref. nr:
krn3526
