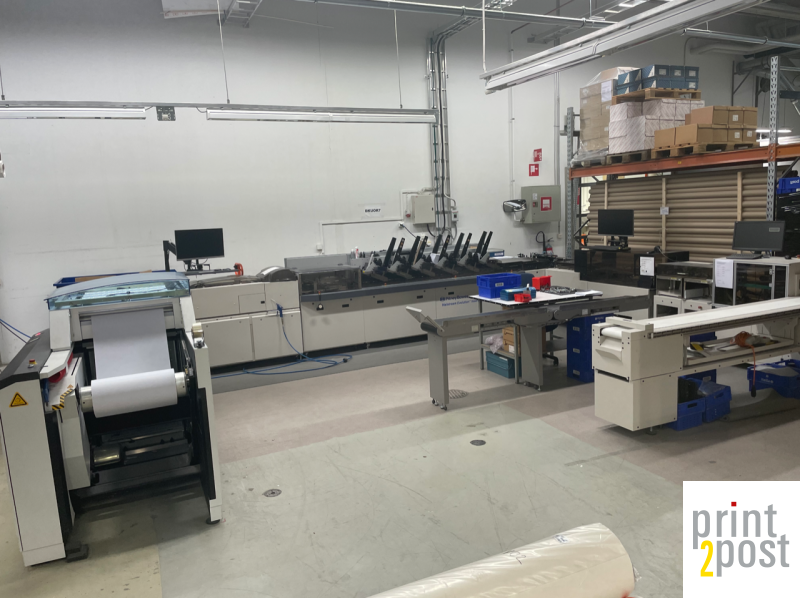

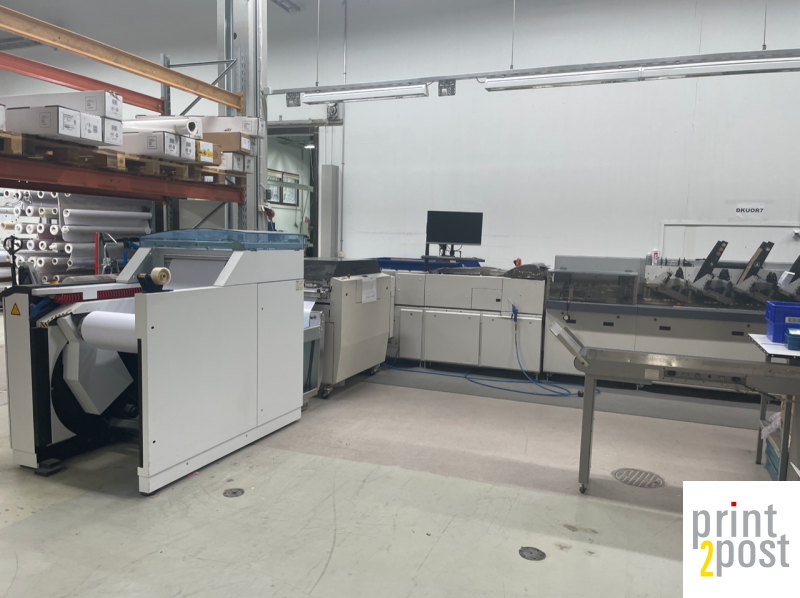

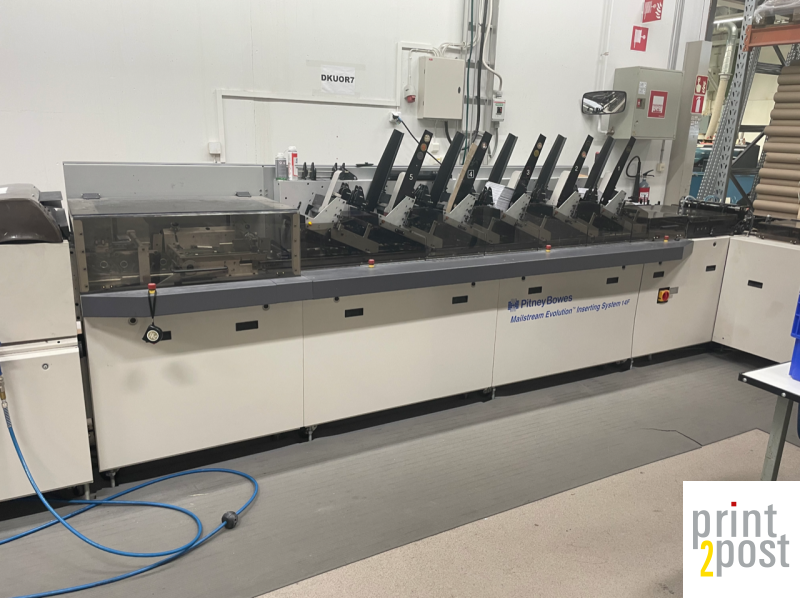

Pitney Bowes MSE, HPI 50k cutter
6 feeders, YOM 2015, camera reading for DM

Images:

Manufacturer / Model:
Pitney Bowes / MSE (Mailstream Evolution Chassis), Spilt Drive

Modell:
MailStream Evolution (MSE)

Configuration:
1 channel cutter, 6 enclosure stations on 6 station chassis,direct scan inserting

Envelope sizes:
DL, C6, C6/5, C5, C4

Speed in env/h:
12.000

1st channel:

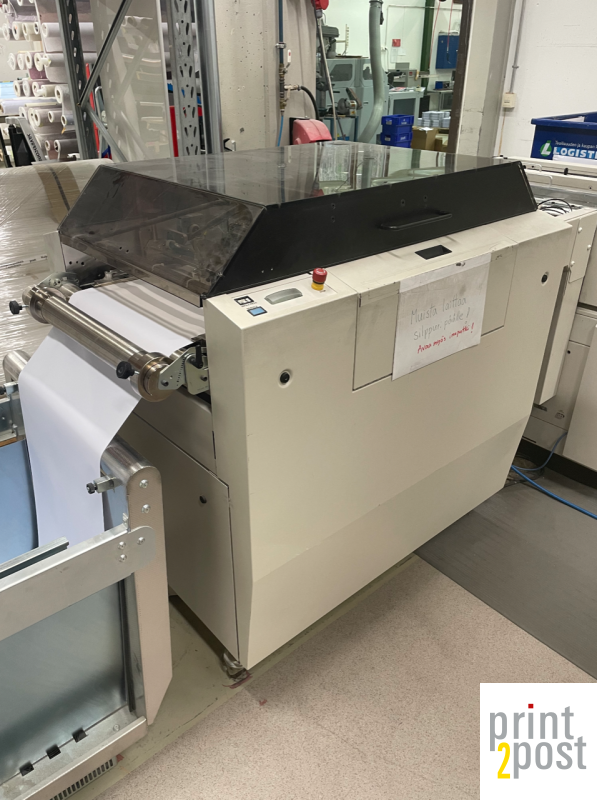

HPI 50C cutter with 2x Lake Image Systems (bottom) to read all code symbologies (2D / BCR / OMR) on the prime document
installed on the West Port

2nd channel:
no

Enclosures:
6x friction feeders

Number of check bins:
2, 1x check conveyor

Extras (included):

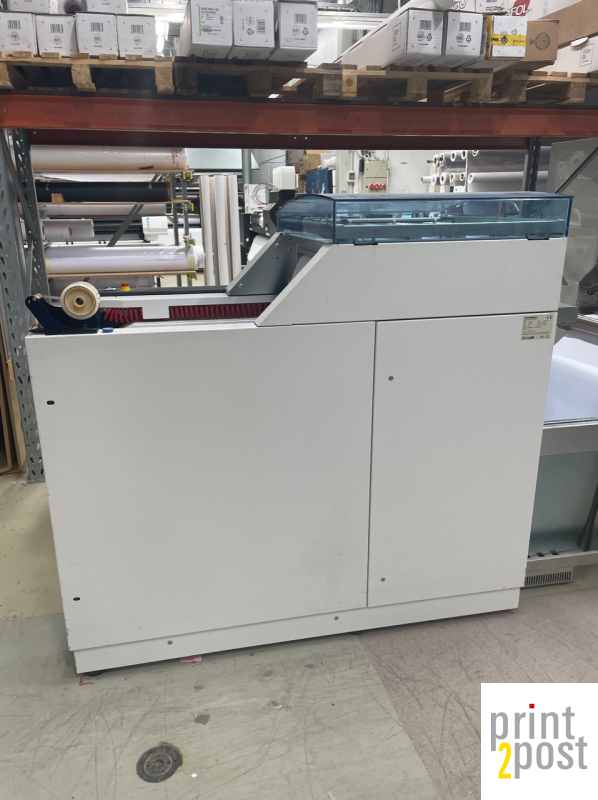

Hunkeler unwinder UW6,
high capacity envelope feeder (up to 3.500 env.)
HPI accumulator (dual deck)
HPI folder

DC computer Win 7

output:
4 functional out sort stackers (one heavy out sort bin included)
edge marker
shingle stacker for DL, C5, C4
select envelope seal / no seal
sealer
turn over

Option (not included):

Frequency:
50 Hz. + 60 Hz

1^st Installation:
2015

Clicks/envelopes in Mio:
tba

Status:
installed

Availability /ex works:
imm ex site EU

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

layout:
click here

p2p-ID:
pb_mse_04
