Pitney Bowes EPIC 22, feeder 50K+ cutter Y484 72K,6 feeders, YOM 2015

Images:

Modell:
EPIC

Configuration:
2 channels cutter+feeder, double accu, folder, 6 enclosure stations on a 6 station EPIC chassis,
8 station buffer, P2L & TnT, turn over, 3 check bins

Envelope sizes:
DL, C6, C6/5, C5, C4
1-75 docs/env.

Speed in env/h:
22.000

1st channel:
HiCap 50K (North) Cognex Camera, 36K

2nd channel:
Cutter pinless Y484 Cognex camera 2-up (West) 72K, Hunkeler UW6 unwinder with VU 150m, right version

Enclosures:

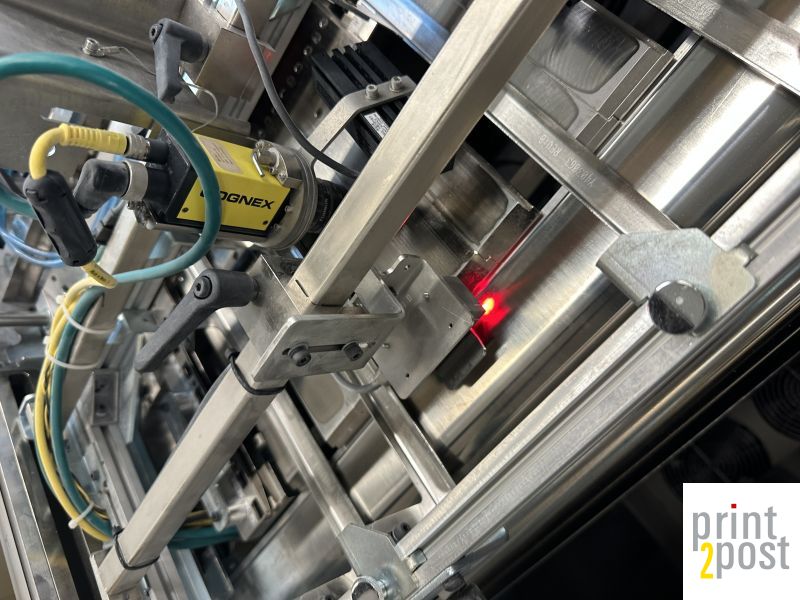

6 (3cxfriction, one of it with Cognex camera reading, 3x rotary)

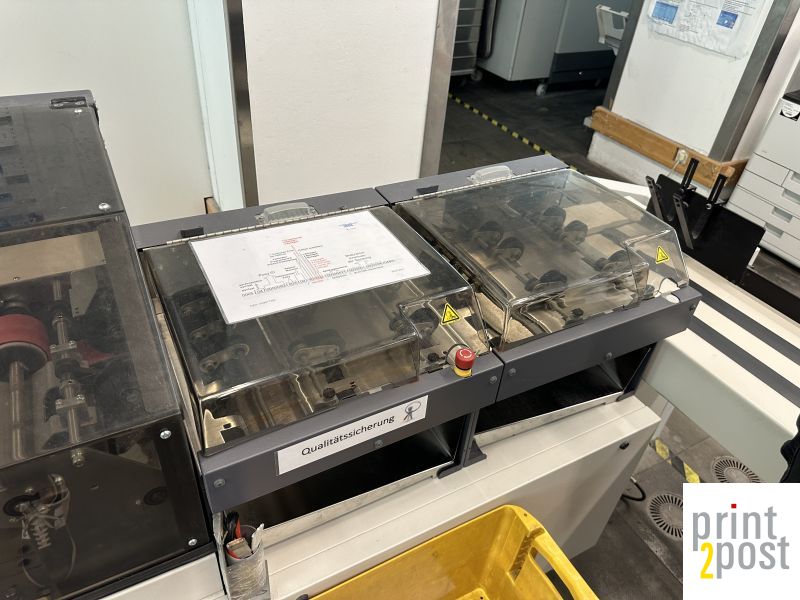

Number of check bins:
3

Extras (included):

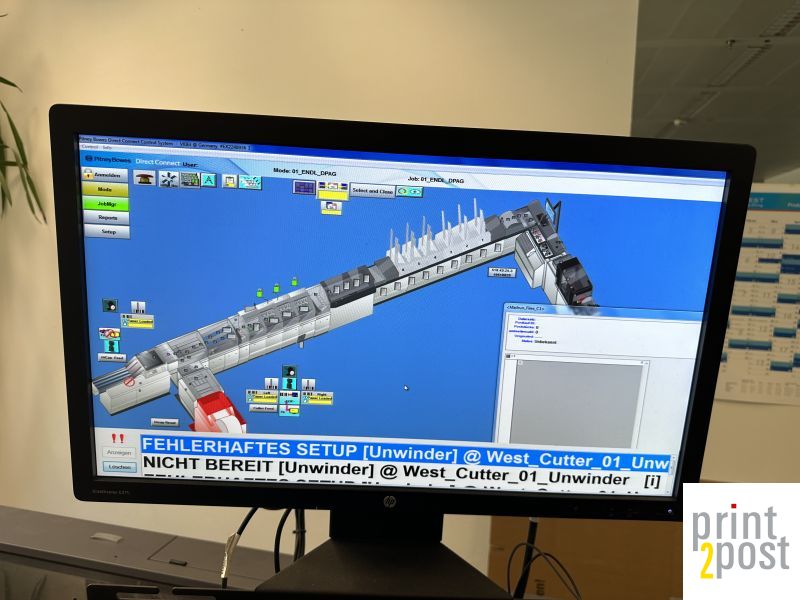

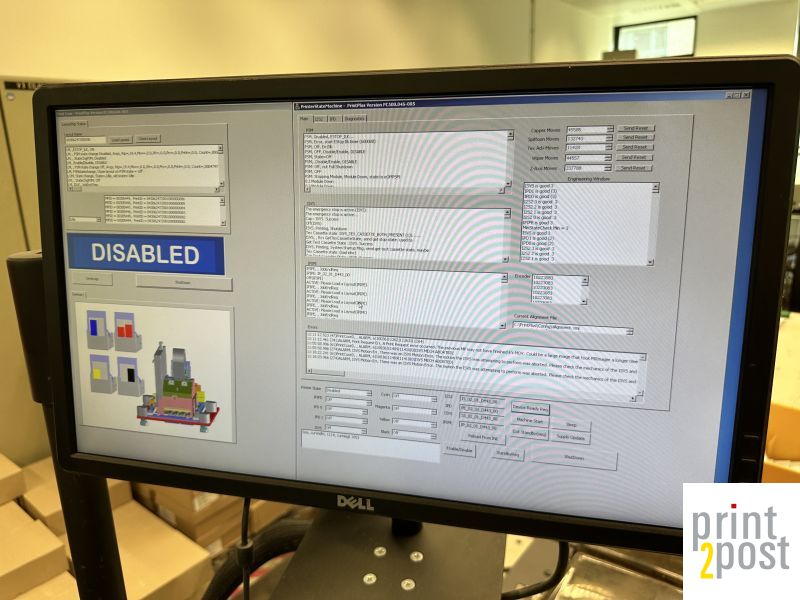

WINDOWS 7
closed loop with Pitney Bowes InSight
FFM Printmanager
automatic format change:
envelope, cover and web width must be chaged manually, rest (folder, turn and TO) automatically

Option (not included):
compressor, Boge  DS9 230/1/50

Frequency:
50hz + (60hz.possible for US market, needs minor adaption, exchage of vacuum pumps and power boxes)

1^st Installation:
2015

Clicks/envelopes in Mio (per 08/23)
main counter: 85.174.467
feeder 131.030.381
cutter: 298.610.693

Status:
installed

Availability / ex works:
around 06/24 / EU

Price in EURO:
Request a quote

manufacturers brochure:
Technical Specification

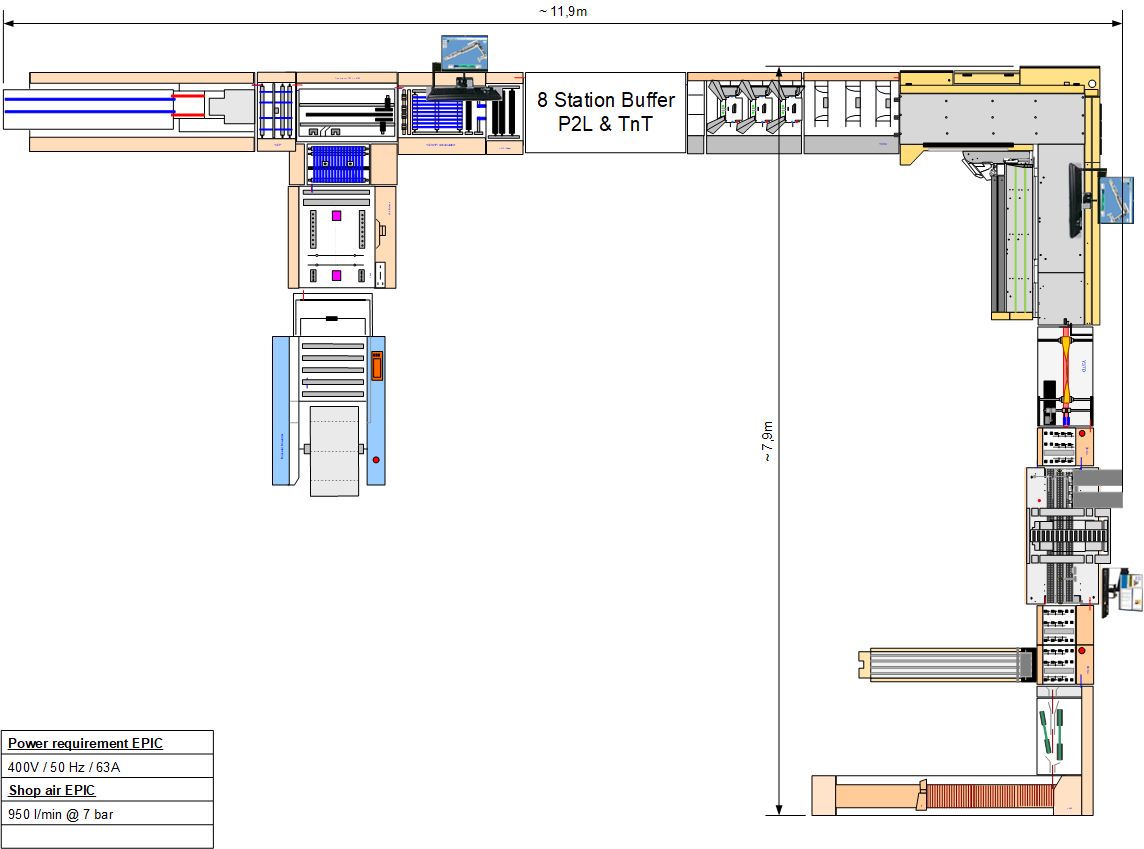

layout:
click here

p2p-ID:
pb_epic_02

video:
