Hunkeler Popp7-line with Stahlfolder TH66/4, DC7 drum collector for newspapers

Images:

Manufacturer / Model:

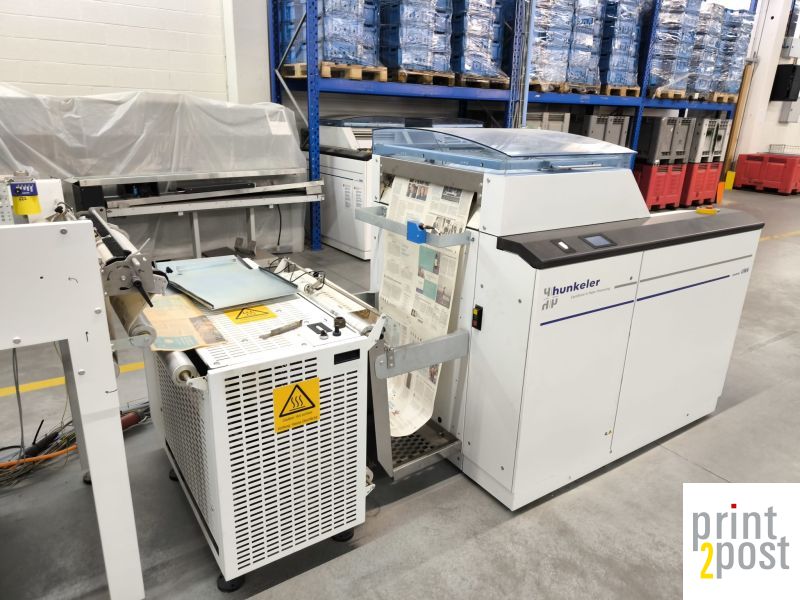

unwinder UW6 22" VU left version with built in LI4/6 interface
Hunkeler WD7 7190 web dryer 30"
Hunkeler LC7 7501 loop control 30"

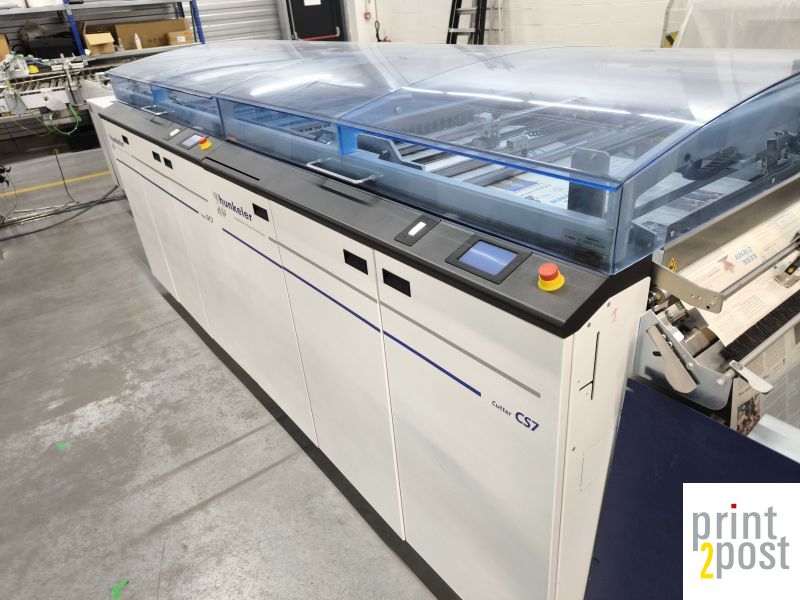

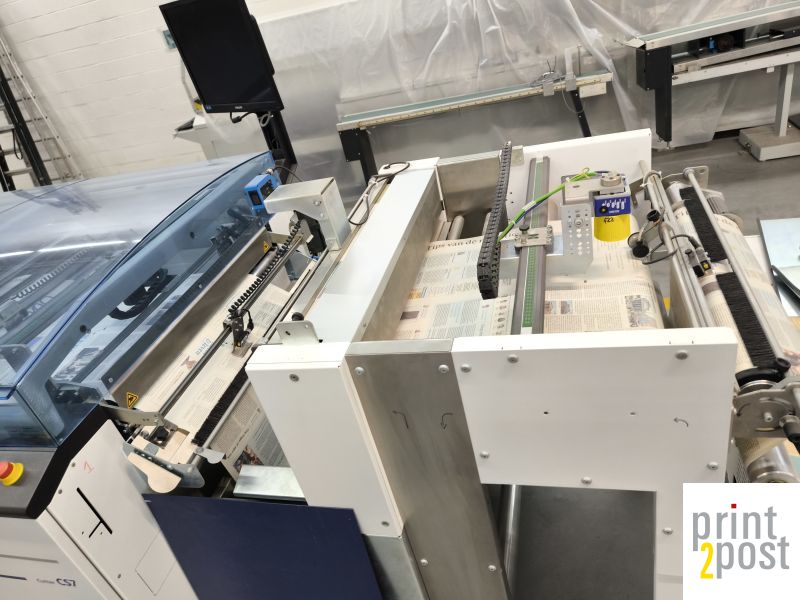

Hunkeler CS7-I 7500 cutter 30" with HLI (human line interface)

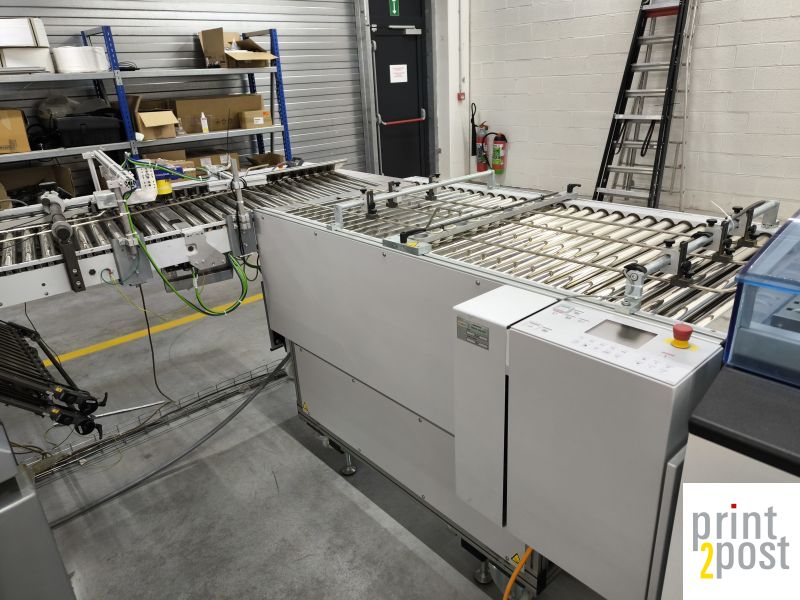

Hunkeler DC7 7190 drum collator 30" with 2x glue heads (hardly used) collates the duplex printed sheets of variable size. The papers leave the collating module as an electrostatically-fixed stack into the Buckle Folder.
GRT-66 roll table 90 degree deflecting unit to buckle folder No1

Stahlfolder 2. BUH-66 (TH66/4)

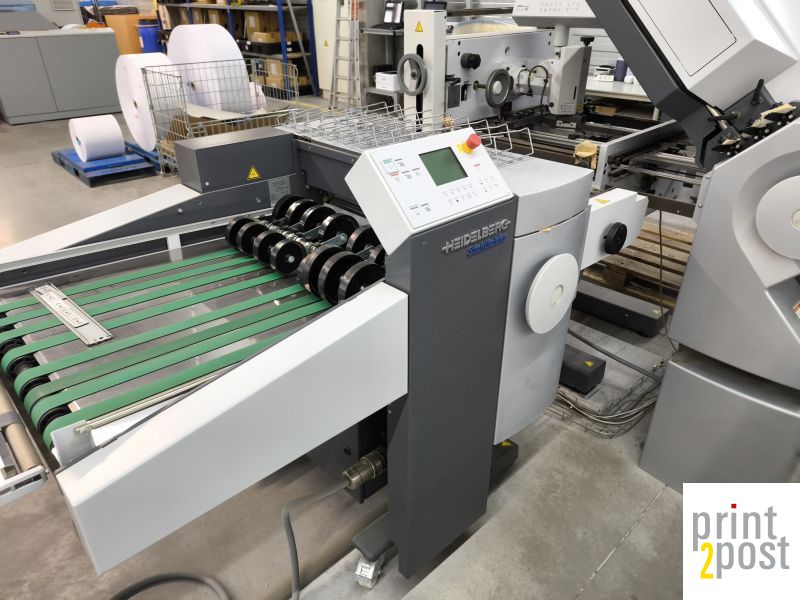

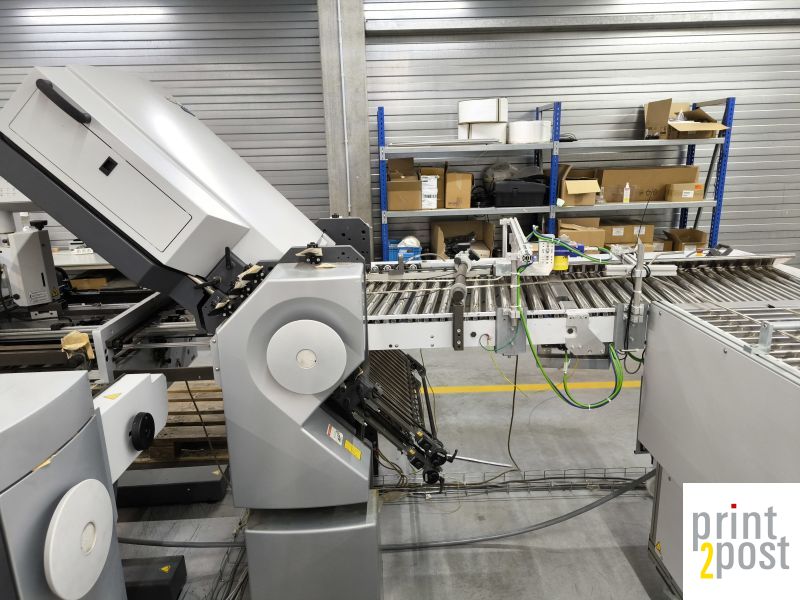

Stahlfolder VF-66 folding unit 4x cross (buckle folder with integrated knife folder)

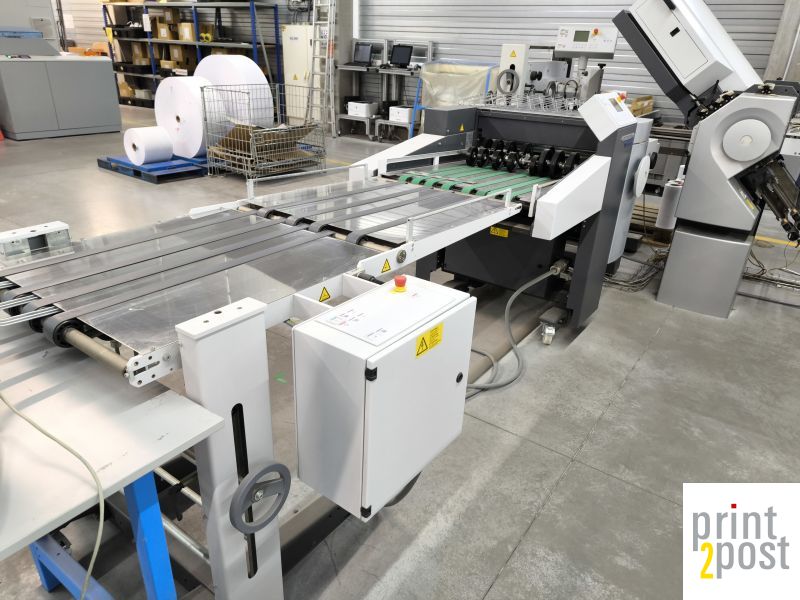

Stahlfolder SPH-70 shingling press conveyor 70*100cm
SAL 66 roll away delivery 66*45cm

Transport:
pinless

Speed in m/min: up to app. 150, dispatch to folder up to 250m/min

gramature: 40-90gsm, 35-120gsm needs to be tested

Extras (included): tracking system, produces reprint file

Option (not included): cross turning unit, WEKO moisturizer

Frequency: 50 Hz.+ 60Hz.

1^st Installation: 2013

Mileage: very low, pristine condition, CS7 has done only 5.183h

Status: de-installed by Hunkeler 11/25

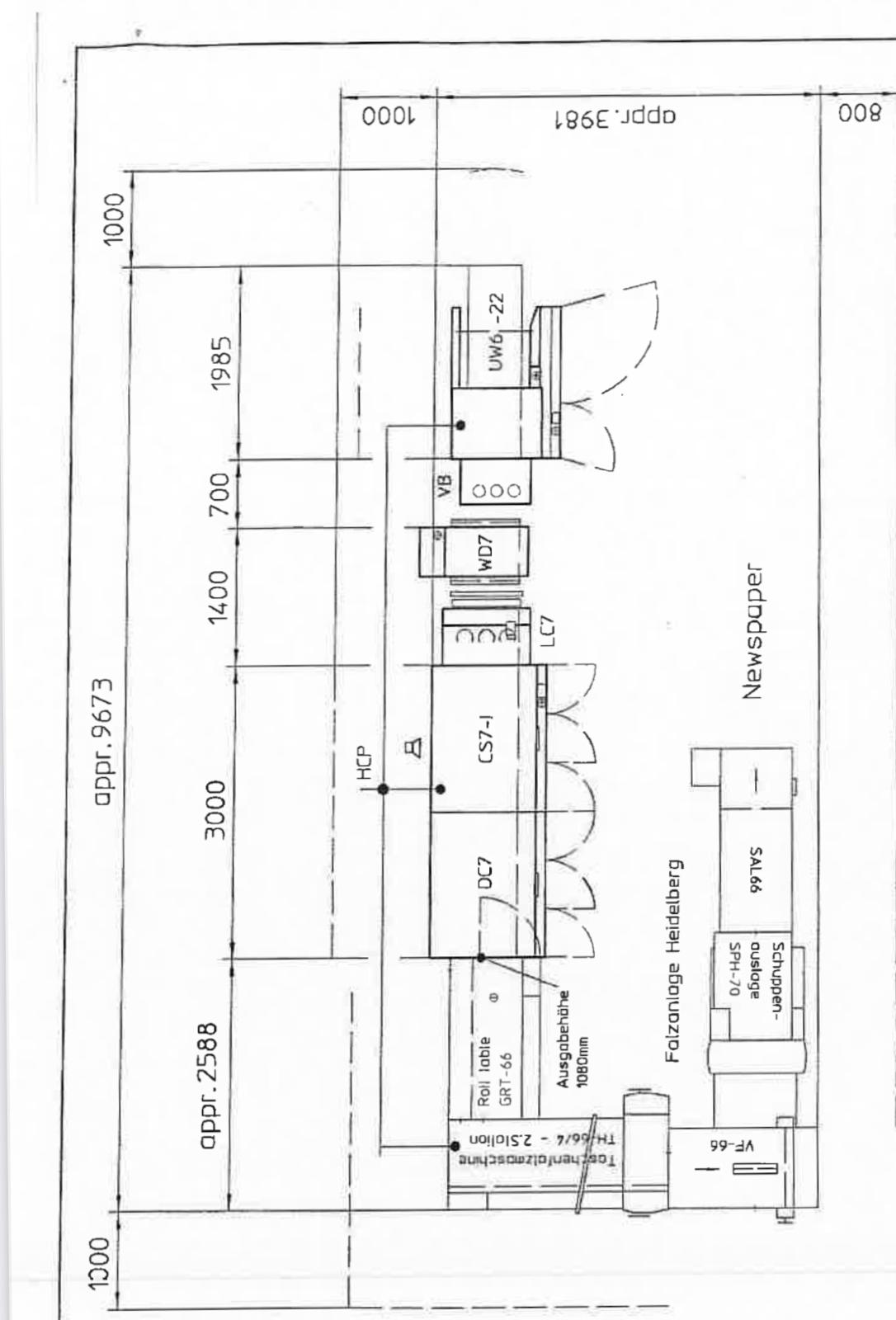

layout:  click here

video: https://youtu.be/5vuZLOGIRLc?si=Qu06ULp38XWyehVg

Availability / ex works: imm / EU

Price in EURO: Request a quote

p2p_ID: dc7_03
