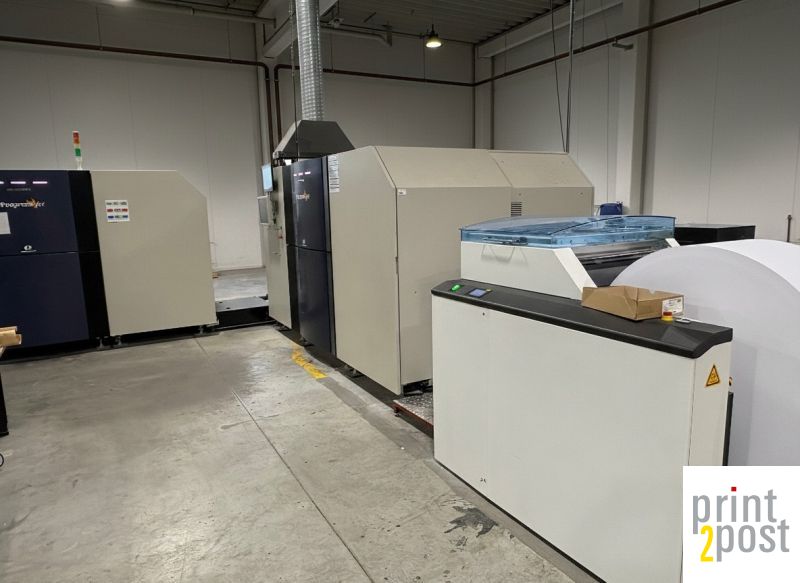

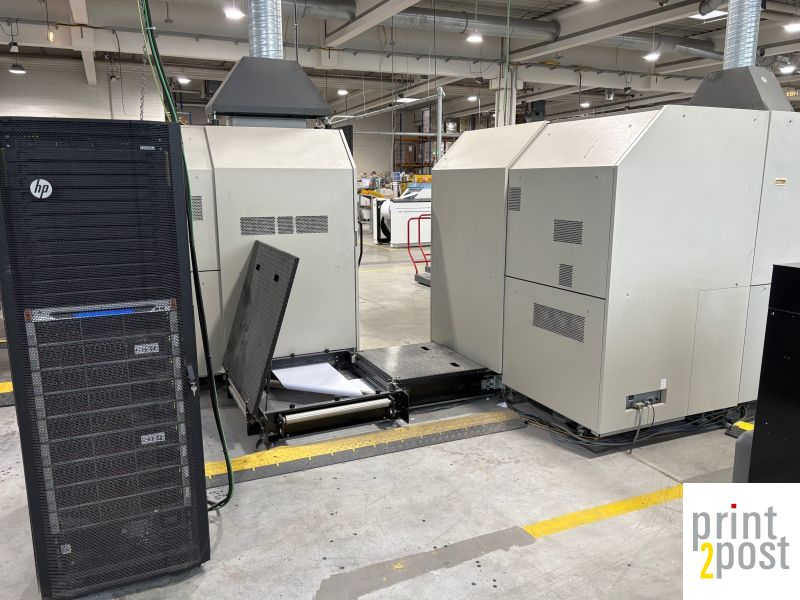

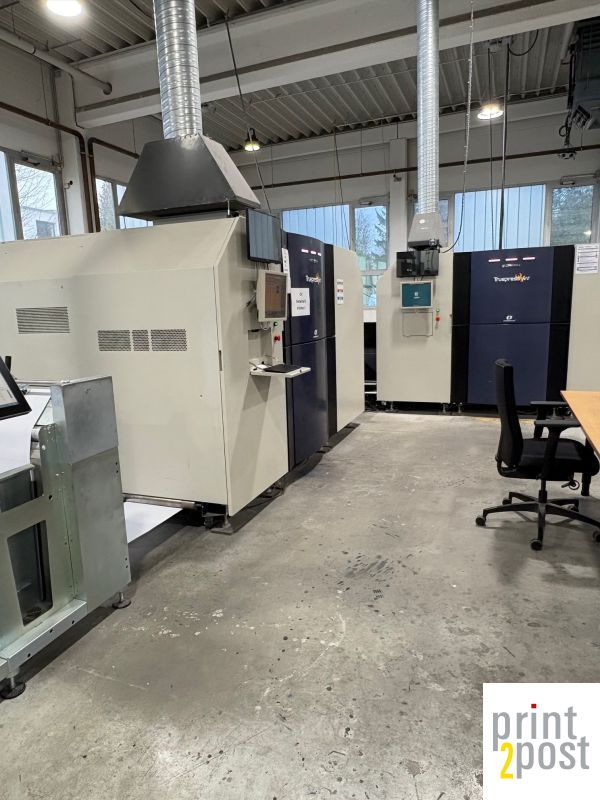

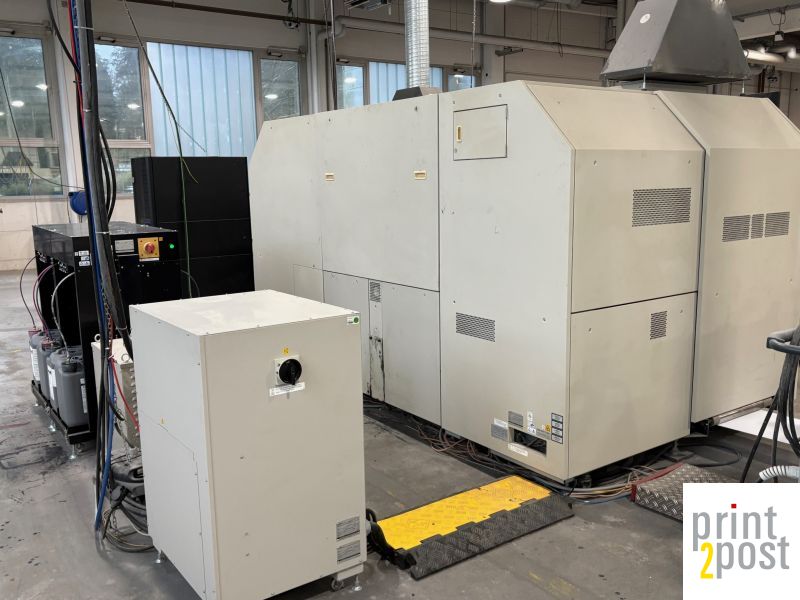

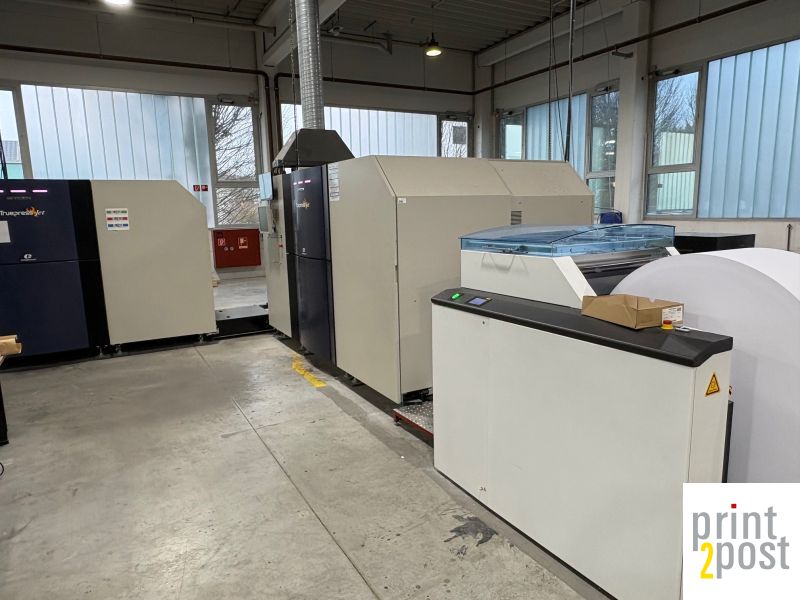

SCREEN Truepress Jet 520ZZ InkJet Press L-Twin

incl RIP makes dual simplex printing possible
50 PrintHeads replaced in 2025

Images:

Model:
TP-520 ZZ

Controller / RIP / Frontend:
installed RIP makes dual simplex printing possible

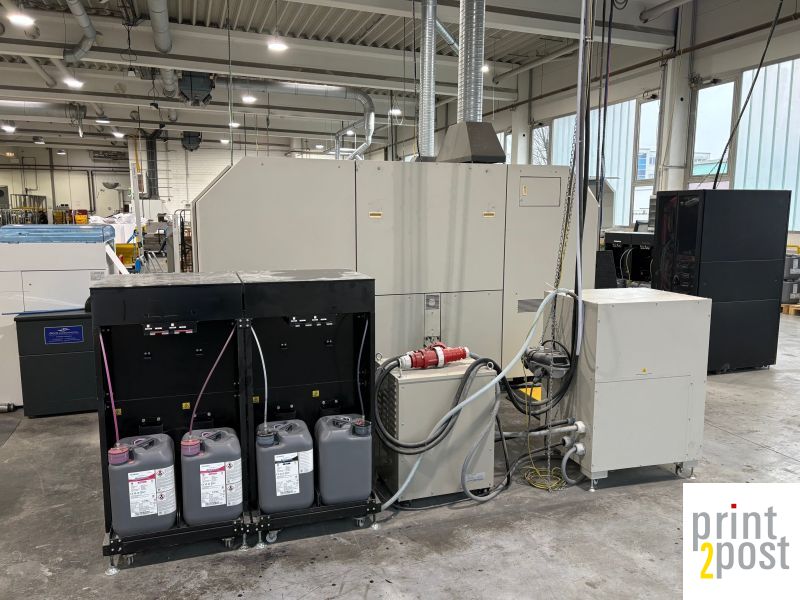

Ink:
waterbased pigment Pigment ink

Option:

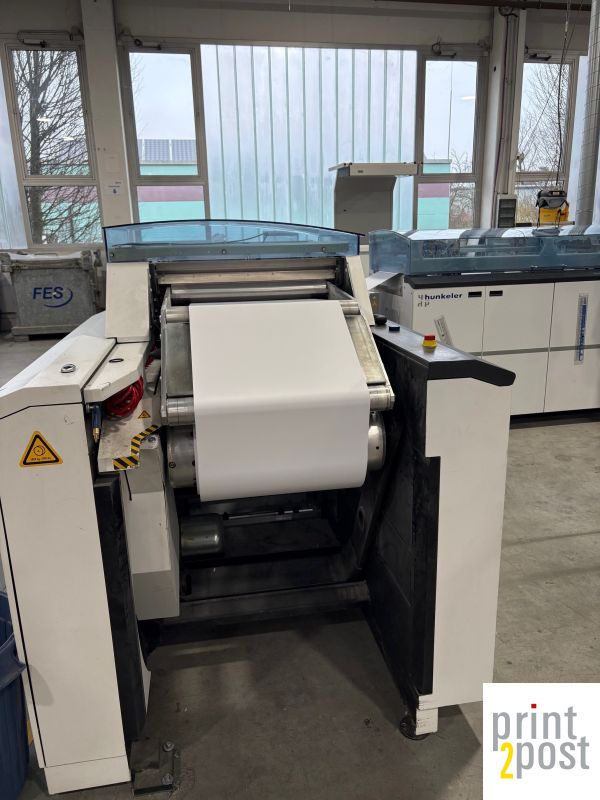

Hunkeler POPP6 Winders

Printing Speed:
150m/min.

Paper Transport:
pinless, tight web, automatic tension control

Web Width:
165 to 520.7 mm  (6,5 to 20,5 inches)

Printable Width:
150 to 502 mm (6,0 to 19,8 inches)

Power Requirements:
Three phase 200 to 240 V, 25A / 380 to 440 V, 15A

1st Installation:
2017

User Counters overall:
Printer 1:            61,6 Mio. Meter (= ca. 204 Mio.   12“ Vorschübe)
Printer 2:            69,6 Mio. Meter (=      229,7 Mio. 12“ Vorschübe)

Status:
installed and in operation
maintained by Screen

Availability:
Q2, 2026

ex works:
customer site EU

Sales Price in EURO:
Request a quote

Notes:

manufacturers brochure:
Technical Specification
