2xUW6 – Screen HD+ –DP8 - 2xRW6
the retrofit of a NIR drying system makes it a HD+
Images:
Manufacturer / Model:
SCREEN Truepress
Model:
TP520 HD+
Controller / RIP / Frontend:
EQUIOS: PS, PDF, PDF/VT (standard)
IPDS Controller: AFP/IPDS (optional)
according to Screen free transfer of installed software is questionable and may cost
Resolution:
max. 1200 x 1200 dpi
Ink:
waterbased Pigment
Option:
Hunkeler POPP6 Winders, DP8 Perforator, I-Config
Printing Speed:
Max. 150 m (492')/min. (with option)
Paper Transport:
pinless, tight web, automatic tension control
Media Width:
uration
165 to 520 mm (6,5 to 20,4 inches)
Printing Width:
150 to 508 mm (492')/min.
Media thickness:
40 to 250 gsm (up to 157 gsm for the speed of 150 m/min.)*
Power Requirements:
Three phase 200 to 240 V, 25A / 380 to 440 V, 15A
1st Installation: 2018
User Counters overall: tba
Status:
installed and in operation
Availability:
hopefully by end Q4, 2026
OTHER:
Model Upgrade (520HD → 520HD+):
This retrofit successfully elevates the machine to the technical standard of the 520HD+, which was sold directly by the manufacturer in this configuration.
This is a critical value-driver for any machine appraisal or resale scenario, as the asset operates in a higher performance class (e.g., faster drying speeds,
ability to handle a wider variety of printable substrates/heavy inks).
Viewing/Inspection possible

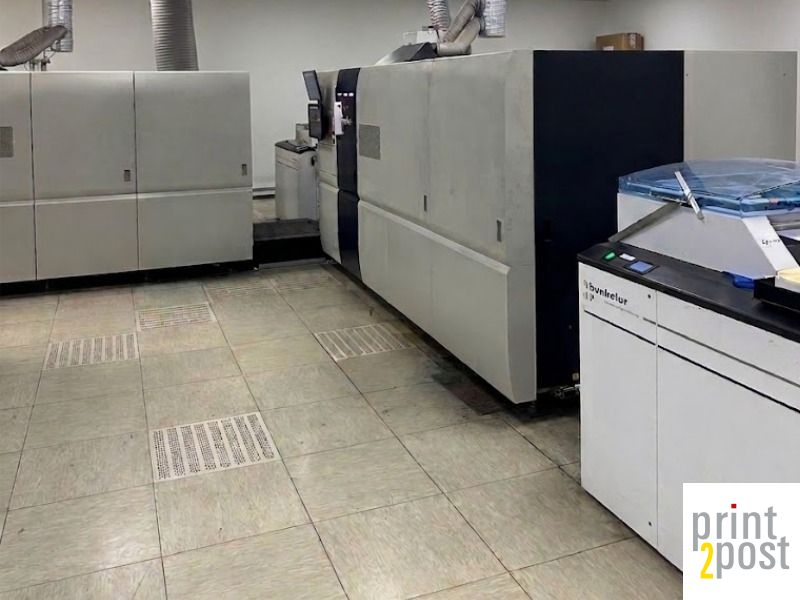

please ask for site fotos and video of system in operation
ex works:
customer site EU
Sales Price in EURO:
Request a quote
Notes:
manufacturers brochure:
Technical Specification
